Product Details:
|
| Model Number: | FTTH | Conductors: | ≥10 |
|---|---|---|---|
| Product Name: | Indoor/Outdoor Optical Fiber Cable | Structure: | Fiber Optical Cable With Drop Steels |
| Core: | G652D, G657A1, G657A2 | Fiber Type: | Mono Mode/ Multi-mode |
| Layout Ways: | Overhead/Aerial Outdoor 044 | Jacket Sheath: | PVC, LSZH, PE |
| High Light: | Monomode 4 Core Drop FTTB FTTX Cable,4 Core Drop FTTX Cable,2 Core Drop FTTX Cable |
||

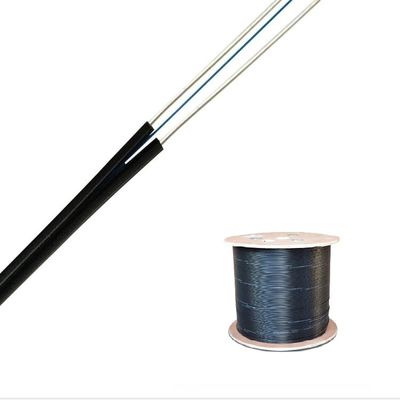

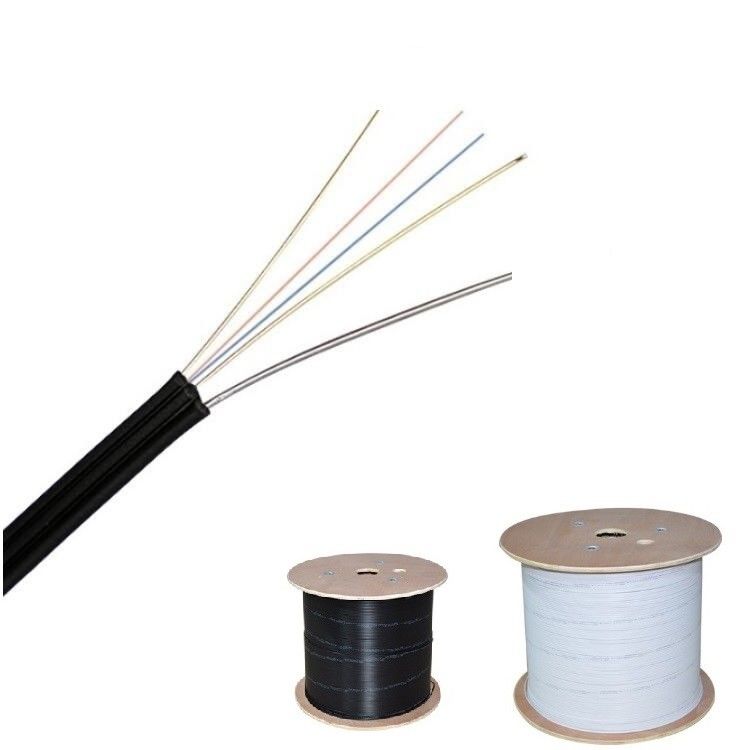

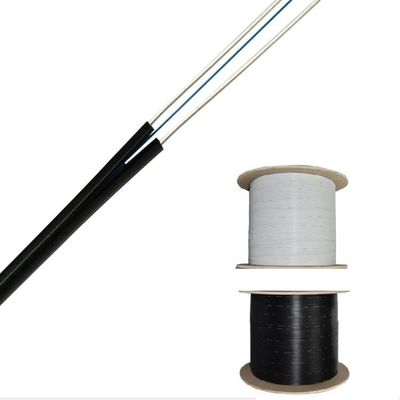

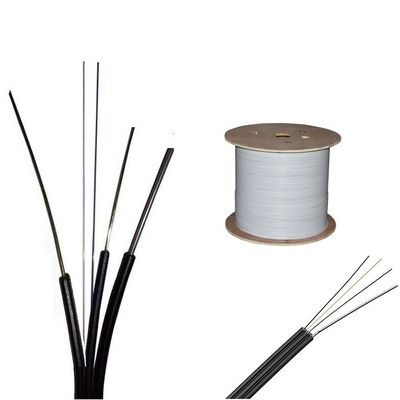

FTTH FTTB FTTX Monomode 1/2/4 Core Drop Fiber Optical Cable
Description:
With unique flexural optical fibers, which provide greater bandwidth and enhance network transmission functions.
Double parallel FRP or steel wires with good compressive properties and protect optical fibers.
Simple in structure, light in weight and universally used.
A single steel wire or stranded wire with additional reinforcing elements to make the cable with good anti-tensile properties.
LSZH sheath is good for environmental protection. eeled, easy to be connected,installed and maintenance.
LSZH sheath is good for environmental protection.
Fiber Parameters:
| Cores no. | OD (outer dia.) |
Weight kg/km |
Tensile Strength Long /Short Term |
Crush Resistance Long/Short Term N /100mm |
Bending Radius Static/Dynamic mm |
| 1 | 2.0x5.0 | 20 | 100/200 | 1000/2200 | 10D/20D |
| 2 | 2.0x5.0 | 20 | 100/200 | 1000/2200 | 10D/20D |
| 4 | 2.0x5.0 | 20 | 100/200 | 1000/2200 | 10D/20D |
| 6 | 2.0x5.5 | 21 | 100/200 | 1000/2200 | 10D/20D |
| 8 | 2.0x6.0 | 23 | 100/200 | 1000/2200 | 10D/20D |
| 12 | 2.0x7.0 | 25 | 100/200 | 1000/2200 | 10D/20D |
