Product Details:
|
| Name: | Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 Core Fiber Optic Cable | Wavelength: | 1260 To 1650nm |
|---|---|---|---|
| Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
| Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
| No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
| High Light: | Messenger Wire FRP G657 FTTH Drop Cable,Messenger Wire FRP G657 FTTH Drop Cables,Messenger Wire FRP G657 FTTH Cables |
||
Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 core fiber optic cable
Description of Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 core fiber optic cable

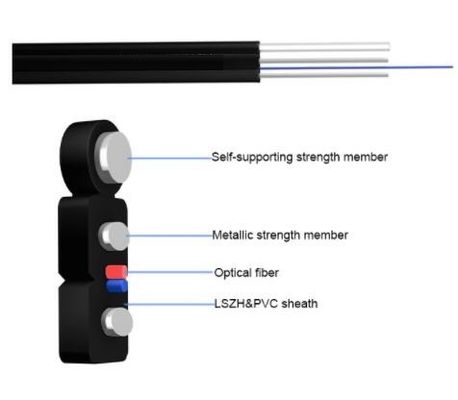

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.
Features of Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 core fiber optic cable
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Applications:
• Indoor and outdoor wiring system
• FTTH, terminal system
• Indoor and outdoor shaft,building wiring
Structural Parameter
| Model No. | Count |
Cable Size (mm) |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
| GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
| GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
Optical Fibre Performance
| Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Typical value | MAX | Typical value | MAX | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 |
30 |
FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Wuhan City, Hubei Province, China.
All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years,and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 30m can be provided freely,but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly,we use top quality raw material best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,it is okay.please give us letter of authorization.

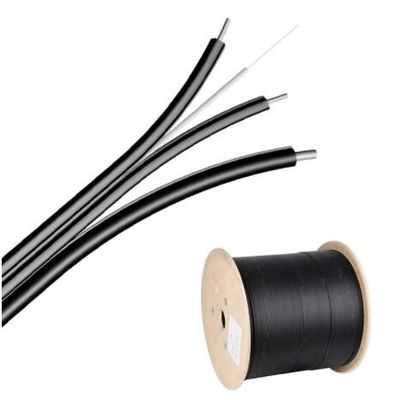

Drawings of Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 core fiber optic cable
