GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable with Messenger
Description of GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable with Messenger
FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.
Features of GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable with Messenger
1, High tensile of the diameter1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (2.0±0.2)x(5.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification
|
Item
|
Technology parameter
|
||
|
Cable type
|
GJYXCH-1B6
|
GJYXCH-2B6
|
GJYXCH-4B6
|
|
Cable specification
|
5.2×2.0
|
||
|
Fiber type
|
9/125 (G.657A2)
|
||
|
Fiber counts
|
1
|
2
|
4
|
|
Fiber color
|
Red
|
Blue, orange
|
Blue, orange, green, brown
|
|
Sheath color
|
Black
|
||
|
Sheath material
|
LSZH
|
||
|
Cable dimension mm
|
5.2(±0.2)*2.0(±0.2)
|
||
|
Cable weight Kg/km
|
Approx. 19.5
|
||
|
Min. bending radius mm
|
120
|
||
|
Min. bending radius mm
(Excluding messenger wire) |
10 (Static)
25 (Dynamic) |
||
|
Attenuation dB/km
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
||
|
Short term tensile N
|
600
|
||
|
Long term tensile N
|
300
|
||
|
Short term crush N/100mm
|
2200
|
||
|
Long term crush N/100mm
|
1100
|
||
|
Operation temperature ℃
|
-20~+60
|
||
|
Item
|
Technology parameter
|
||
|
Cable type
|
GJYXFCH-1B6
|
GJYXFCH-2B6
|
GJYXFCH-4B6
|
|
Cable specification
|
5.2×2.0
|
||
|
Fiber type
|
9/125 (G.657A2)
|
||
|
Fiber counts
|
1
|
2
|
4
|
|
Fiber color
|
Red
|
Blue, orange
|
Blue, orange, green, brown
|
|
Sheath color
|
Black
|
||
|
Sheath material
|
LSZH
|
||
|
Cable dimension mm
|
5.2(±0.2)*2.0(±0.2)
|
||
|
Cable weight Kg/km
|
Approx. 13.5
|
||
|
Min. bending radius mm
|
120
|
||
|
Min. bending radius mm
(Excluding messenger wire) |
10 (Static)
25 (Dynamic) |
||
|
Attenuation dB/km
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
||
|
Short term tensile N
|
230
|
||
|
Long term tensile N
|
110
|
||
|
Short term crush N/100mm
|
1000
|
||
|
Long term crush N/100mm
|
500
|
||
|
Operation temperature ℃
|
-20~+60
|
||
Technical Parameter of GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable with Messenger
| Cable Type | Cable Diamter (mm) | Weight (kg/km) | Tensile strength(N) | Crush Resistance(N/100mm) | Minimum bending radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Static | Dynamic | |||
| GJXFH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXFH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXFH-4 | 2.0*5.6 | 21.5 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
|
Item
|
Standard
|
Unit
|
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
|
1383nm
|
≤0.33
|
dB/km
|
|
|
1550nm
|
≤0.21
|
dB/km
|
|
|
1625nm
|
≤0.24
|
dB/km
|
|
|
Dispersion
|
1288nm～1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
|
1271nm～1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
|
Zero-dispersion wavelength
|
1300～1322
|
(nm)
|
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
|
Cladding diameter
|
125±1.0
|
μm
|
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
|
Coating diameter
|
245±10
|
μm
|
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
|
Cut-off wavelength
|
1.18～1.33
|
μm
|
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
|
1625nm
|
≤0.05
|
dB
|
|
|
Bending radius
|
≥5
|
m
|
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃～85℃, 3 cycles) |
≤0.03
|
dB/km
|
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|
|

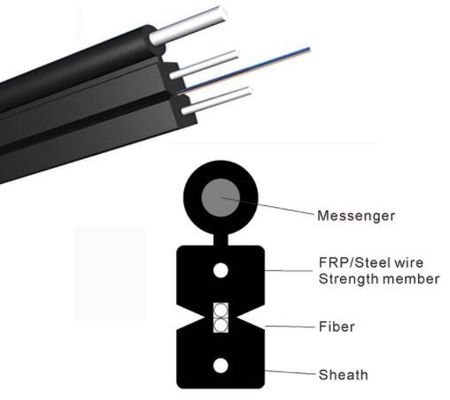

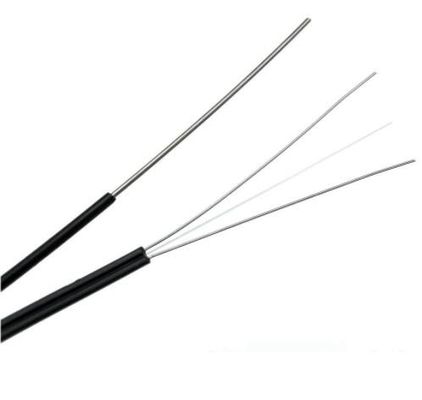

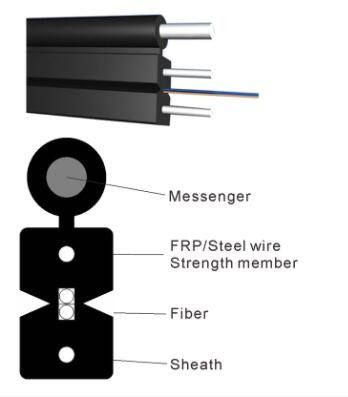

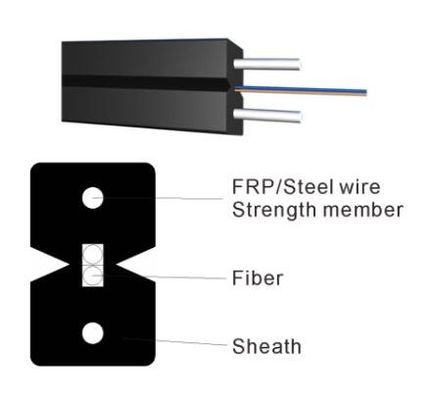

Drawings of GJYXCH-1B6 G657A2 1 Core Outdoor FTTH Optical Fiber Drop Cable with Messenger
