Product Details:
|
Name: | GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop | Wavelength: | 1260 To 1650nm |
---|---|---|---|
Type: | Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 | Connector: | SC LC |
Cable Type:: | G657A1 Or As Customers' Order | Operating Temperation: | -40℃ To 85℃ |
No. Of Fiber: | 2 4 8 16 | Usage: | FTTH |
High Light: | 1KM GJYXFCH FTTH Drop Fiber Optic Cable,FTTH 1KM 1 Core Fiber Optic Cables,FTTH 1KM 1 Core Fiber Optic Cable |

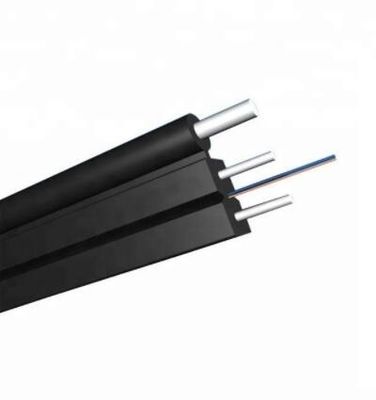

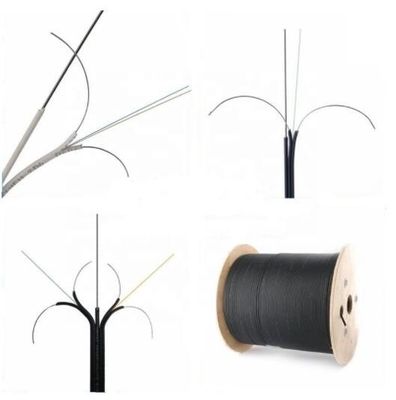

GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop
Description of GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop
Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
Features of GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop
1, High tensile of the diameter1.2mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (4.0±0.2)x(6.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification
Item
|
Technology parameter
|
Cable Type
|
Drop Cable
|
Cable Count
|
1 2 4 6 8 12
|
Fiber Color
|
Green, Yellow
|
Fiber Type
|
9/125 (G657A1)
|
Outer Sheath Color
|
Black or white
|
Sheath Material
|
LSZH
|
Cable Dimension (mm)
|
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
|
Cable weight (Kg/km)
|
15
|
Min. bending radius (mm)
|
10 (Static) 25 (Static) 30 (Static) 60 (Static)
|
Attenuation (dB/km)
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
Short term tensile (N)
|
200; 600
|
Crush resistance (N/100mm)
|
1000; 2200
|
Operation temperature (℃)
|
-20~+70℃
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
Item
|
Standard
|
Unit
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
1383nm
|
≤0.33
|
dB/km
|
|
1550nm
|
≤0.21
|
dB/km
|
|
1625nm
|
≤0.24
|
dB/km
|
|
Dispersion
|
1288nm~1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
1271nm~1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
Zero-dispersion wavelength
|
1300~1322
|
(nm)
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
Cladding diameter
|
125±1.0
|
μm
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
Coating diameter
|
245±10
|
μm
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
Cut-off wavelength
|
1.18~1.33
|
μm
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
1625nm
|
≤0.05
|
dB
|
|
Bending radius
|
≥5
|
m
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃~85℃, 3 cycles) |
≤0.03
|
dB/km
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|

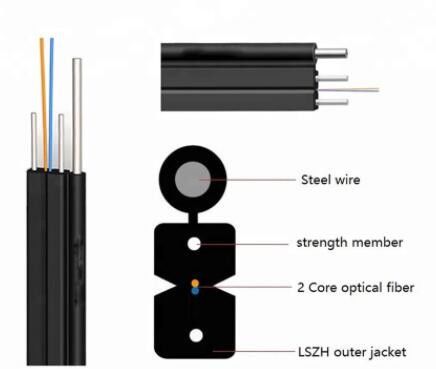

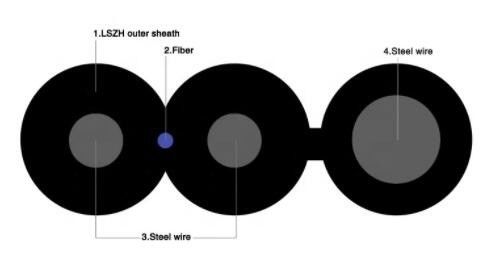

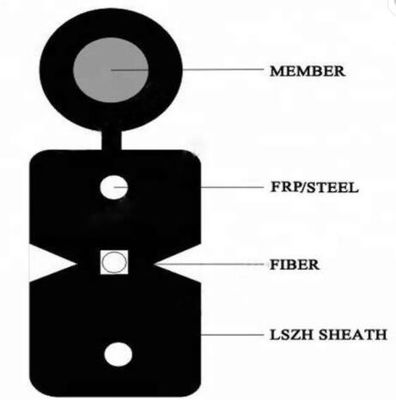

Drawings of GJYXFCH G657A SM 1 Core Fiber Optic FTTH Drop Cable 1KM / Fibra Drop
