Product Details:
|
Model Number: | GJYC8H | Singmode Fiber: | G652D/G657A1/G657A2 |
---|---|---|---|
Color: | Black | Outer Jacket Material: | PVC/LZSH |
Application: | Telecommunication | Packing: | PE Bag |
High Light: | 4 Core Round Outdoor Drop Cable,G657A Figure 8 FTTX Cable,G657A Aerial Figure 8 FTTX Cable |

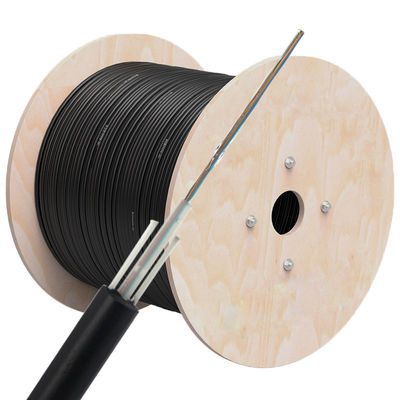

FTTX Outdoor Aerial Figure 8 G657A 1 2 4 Core Round Fiber Optic Drop Cable
Product Description:

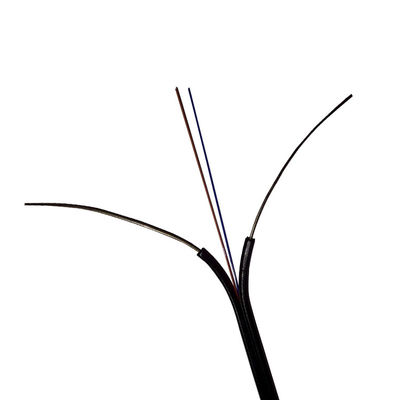

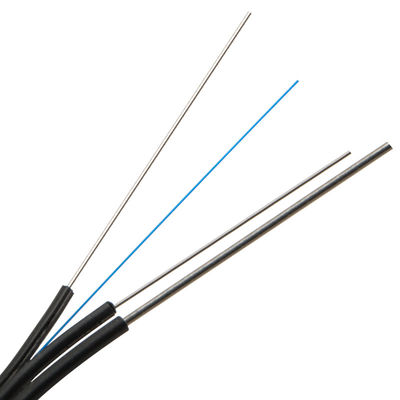

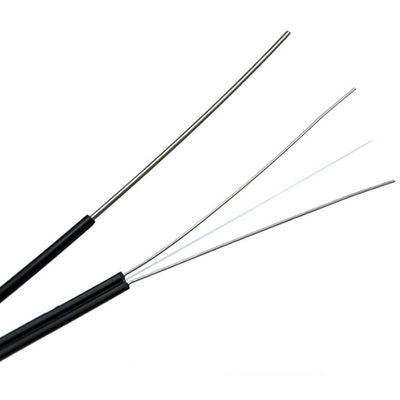

The cable consists of individually color coded 900μm secondary coated fibers reinforced with aramid yarns and covered with UV and flame resistant LSZH jacket.The cable cross section is fig 8 made with a steel wire strength member.
Fiber:
1-12fibers
900µm tight buffer
Strength Member:
Aramid yarn
Messenger Member:
Steel wire or non-metallic member.
Outer Jacket:
UV and Flame resistant LSZH
FiberType: G.652D, G.657A1 or G.657A2 single mode fiber
Features:
Good UV and flame resistant.
Compact, soft, flexible, easy to install.
Fig8 self-supporting design.
Construction of Fiber Optic Cable:
Structure | Material | SPECIFICATIONS |
Aerial Type (1C, 2C) | ||
Optical fiber | Single Mode | G.657A2 |
Colored fiber | 1F : Blue 2F : Blue, Orange |
|
Messenger Wire | Zinc coated Steel Wire | Φ1.1±0.1 |
Strength member | Aramid Yarn | |
Outer sheath | Material | Outdoor LSZH |
Diameter | 1F Diameter : 3.0±0.1* 5.8±0.2mm Thickenss : 0.75±0.1mm 2F Diameter : 3.2±0.1*5.9±0.2mm Thickenss(Avr) : 0.55±0.2mm |
|
Color | Black (Carbon 2.6±0.2%) |
