Product Details:
|
| Conductors: | ≥10 | Type: | Cat 1 |
|---|---|---|---|
| Color: | Black | Fiber Count: | 24 Cores |
| Strength Member: | FRP | Fiber Type: | SM G652D |
| Product Name: | 6-144 Core Optical Fiber Cable | Jacket: | PE |

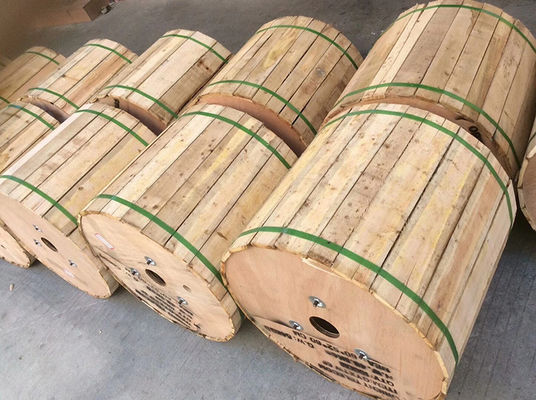

| OEM: | Available | Package: | 3km/4km/5km Per Drum |
| High Light: | ADSS Self Support Fiber Optic Cable,24 Core Single Mode Fiber Optic Cable,48 Core Single Mode Fiber Optic Cable |
||

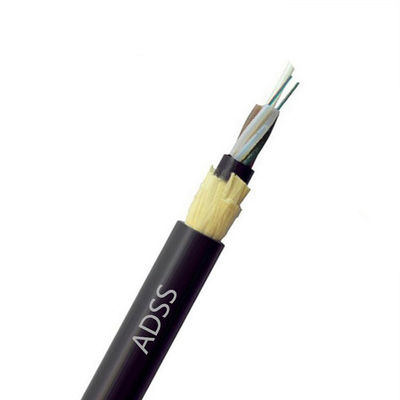

OUTDOOR SELF SUPPORT 12 24 48 CORE SINGLE MODE FIBER OPTIC Cable ADSS Cable
Product Description:

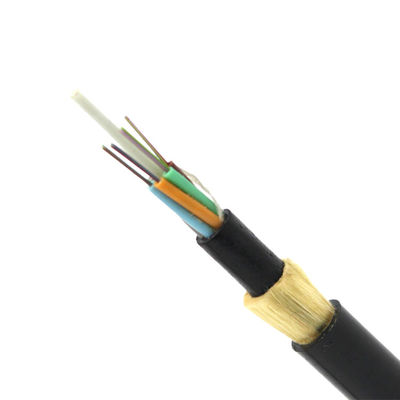

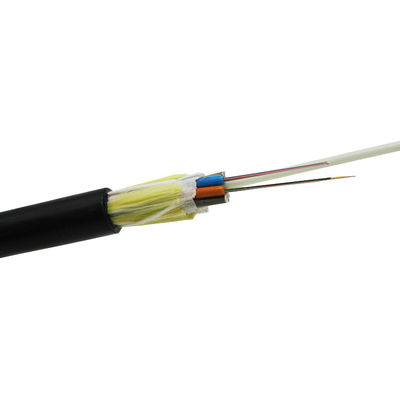

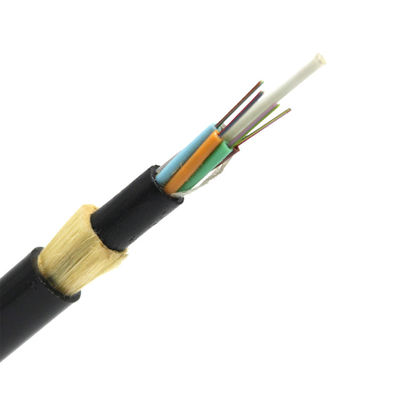

The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.
ADSS cable Technical Parameters:
| Model Number | ADSS |
| Type | Coaxial |
| Number of Conductors | ≥ 10 |
| Application | Aerial fiber cable |
| Function | Delivery signal light |
| Certification | ADSS pass ISO9001,UL, TIL, CE |
| Sheath material | PE or AT for adss fiber optic cable |
| Fiber type | OS1/OS2,OM1,OM2,OM3,OM4 |
| Length per roll | 2km/3km/4km/5kmADSS fiber |
| Fiber count | 2core to 288 core |
| Strength member | FRP |
Features:
· The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs.
· Has good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to protect the fiber.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length and low price.
