Product Details:
|
| Product Name: | 48 Fibers ADSS 200M Span Optical Fiber Cable | Fiber Type: | SM G652D |
|---|---|---|---|
| Color: | Black | Loose Tube: | 4pcs |
| Strength Member: | FRP | OEM: | Available |
| Application: | Aerial Outdoor | ||
| High Light: | G652 48 Core Fiber Optic Cable,All Dielectric Self Supporting Fiber Optic Cable,G652 Self Supporting Fiber Optic Cable |
||

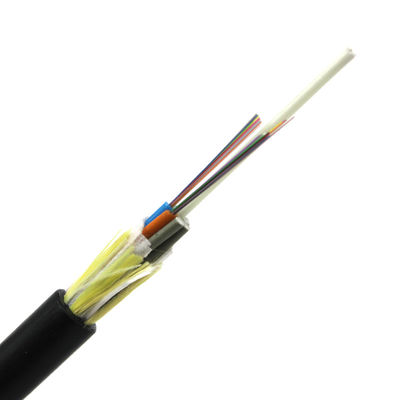

All Dielectric Self Support Single Jacket ADSS 48 Core Fiber Optic G.652 Cable
Product Description:
ADSS armored fiber optic cables feature loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for high-density fibers is expected.
| Cable Type | Fiber Count | Cable Diameter mm |
Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm |
Bending Radius Static/Dynamic mm |
| ADSS | 2~30 | 9.5 | 86 | 1000/3000 | 1000/3000 | 10D/20D |
| ADSS | 32~60 | 10.2 | 99 | 1000/3000 | 1000/3000 | 10D/20D |
| ADSS | 62~72 | 10.9 | 123 | 1000/3000 | 1000/3000 | 10D/20D |
| ADSS | 74~84 | 12.2 | 148 | 1000/3000 | 1000/3000 | 10D/20D |
ADSS |
86~96 | 12.2 | 148 | 1000/3000 | 1000/3000 | 10D/20D |
| ADSS | 98~120 |
14.0 | 183 | 1000/3000 | 1000/3000 | 10D/20D |
| ADSS | 122~144 | 14.5 | 220 | 1000/3000 | 1000/3000 | 10D/20D |
| ADSS | 146~216 | 16.1 | 229 | 1000/3000 | 1000/3000 | 10D/20D |
| ADSS | 218~288 | 18.5 | 290 | 1000/3000 | 1000/3000 | 10D/20D |
| Storage/Operating Temperature : -40℃ to + 70℃ |
||||||
