Product Details:
|
| Product Name: | 48 Fibers ADSS 200M Span Optical Fiber Cable | Fiber Type: | Single /Multi Mode |
|---|---|---|---|
| Color: | Black | Fiber Count: | 4-288 Cores |
| Armoured: | Steel Tape | Jacket: | Double Sheath |
| OEM: | Available | Package: | 3km/4km/5km Per Drum |
| High Light: | OS1 ADSS Fiber Optic Cable,OS2 ADSS Fiber Optic Cable,Aerial OS2 ADSS Fiber Optic Cable |
||

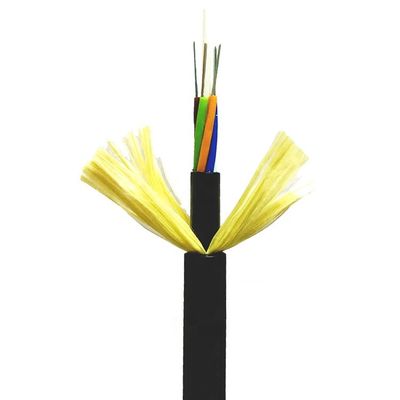

Double Jacket Single Mode OS1 OS2 Outdoor Aerial Dielectric ADSS 48 Core Fibre Optic Cable
Product Description:

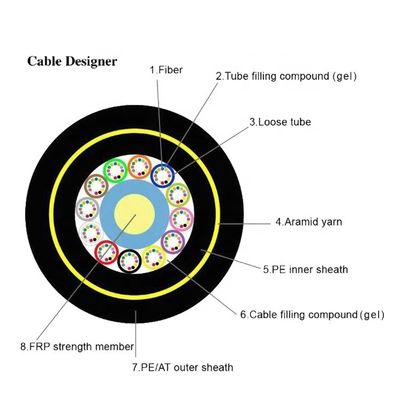

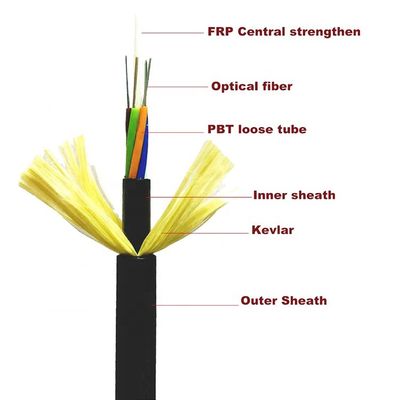

ADSS armored fiber optic cables feature loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.The cable is completed with a single polyethylene (PE) sheath. It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for high-density fibers is expected.
|
Fiber count
|
2~30
|
32~36
|
38~60
|
62~72
|
2~36
|
38~72
|
|
|
CSM/Steel wire (mm)
|
--/1.5
|
--/2.0
|
--/1.8
|
2.4/1.8
|
--/2.0
|
2.4/1.8
|
|
|
Element mumber
|
5
|
6
|
5
|
6
|
6
|
6
|
|
|
Max. cores in tube
|
6
|
6
|
12
|
12
|
6
|
12
|
|
|
Diameter of inner sheath
|
8.3
|
8.8
|
9.1
|
9.7
|
10.5
|
10.5
|
|
|
Steel wire diameter and No.
|
Φ1.0/28
|
Φ1.0/29
|
Φ1.0/30
|
Φ1.0/32
|
Φ1.5/24
|
Φ1.5/24
|
|
|
Cable diameter approx (mm)
|
14.3
|
14.8
|
15.1
|
15.7
|
17.5
|
17.5
|
|
|
Weight approx (kg/km)
|
315
|
328
|
.340
|
360
|
520
|
520
|
|
|
Tensile strength (N)
|
Long term
|
4000
|
10000
|
||||
|
Short term
|
10000
|
2000
|
|||||
|
Crush Resistence(N/100mm)
|
Long term
|
3000
|
|||||
|
Short term
|
5000
|
||||||
|
Bending Radius (mm)
|
Dynamic
|
≥30 ×Dia. Of cable
|
|||||
|
Static
|
≥15×Dia. Of cable
|
||||||
|
Operating Temperature (°C)
|
-40°C ~+ 70°C
|
||||||
|
Application
|
Directly burial and Under water
|
||||||
