Product Details:
|
| Product Name: | ADSS Fiber Optic Cable | Conductors: | ≥10 |
|---|---|---|---|
| Fiber Mode: | Single Mode | Fiber Count: | 48 Cores |
| Fiber Type: | SM G652D | Cable Color: | Black |
| Application: | Aerial Outdoor | Jacket Material: | LLDPE |
| Package Length: | 3KM/Wooden Drum | Strength Member: | Aramid Yarn |
| High Light: | 100m 96 Core Fiber Optic Cable,100m Self Supporting Aerial Cable,100m Self Supporting Aerial Cables |
||

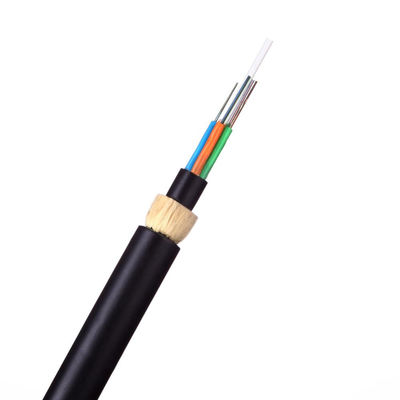

Product Description:
ADSS fiber optic cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network. AFL manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred.
Features:
1.For ADSS cable (100-1500) the fiber counts from 12-144 fibers.
2. Suitable for use on distribution and high voltage transmission lines.
3. Instead of Aramid yarn or glass yarn, there is no support or messenger wire required.
Specifica Parameter:
|
Product Name
|
ADSS fiber optic cable
|
|
Fiber Count
|
24 core
|
|
Construction
|
Loose tube
|
|
Fiber Type
|
Single Mode
|
|
Outer Jacket Material
|
PE
|
|
Jacket Color
|
Black
|
|
Cable Diameter
|
9.5mm
|
|
Weight
|
100KG/KM
|
|
Central Strength Member
|
FRP
|
|
Application
|
Aerial and Duct
|
|
Bending Radius
|
10D/20D(mm)
|
|
Sample status
|
We can provide free sample
|
