Product Details:
|
Product Name: | ADSS Fiber Optic Cable | Conductors: | ≥10 |
---|---|---|---|
Fiber Mode: | Single Mode | Fiber Count: | 12 Cores |
Fiber Type: | SM G652D | Cable Color: | Black |
Application: | Aerial Outdoor | Jacket Material: | Double / Single PE Sheath |
Package Length: | 5KM/Wooden Drum | Strength Member: | FRP+Kevlar Yarn |
High Light: | 1KM ADSS Fiber Optic Cable,2KM ADSS Fiber Optic Cable,3KM 144 Core Fiber Optic Cable |

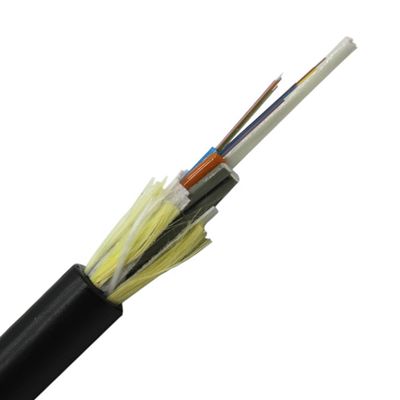

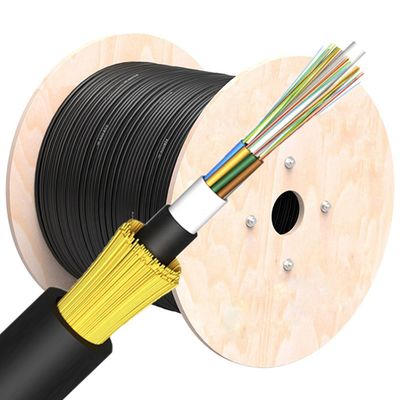

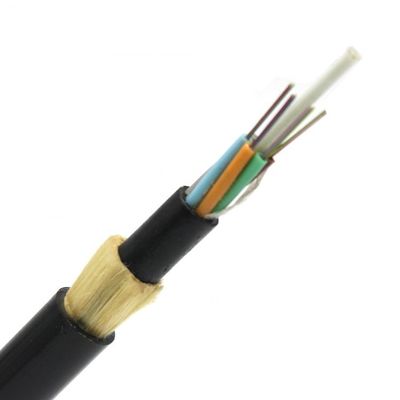

1KM 2KM 3KM Outdoor ADSS Fibra Optical Loose Tube FRP 144 Core Single Mode Fiber Optic Cable
Product Description:
MODEL: OFC-ADSS
Fiber: SM G652D
Strengthen: Aramid Yarn
Jacket Diameter: 9.5mm
Jacket Material: LLDPE
Cable Length: 3Km/Drum
Simple Specification:
Insertion Loss: ≤0.30dB
Return Loss: ≥50dB
Durability: ≤0.20dB
Test Wavelength: 1310/1550nm
Operation Temperature: -20℃ to +60℃
Features:
1.For ADSS cable (100-1500) the fiber counts from 12-144 fibers.
2. Suitable for use on distribution and high voltage transmission lines.
3. Instead of Aramid yarn or glass yarn, there is no support or messenger wire required.
Specifica Parameter:
Product Name
|
ADSS fiber optic cable
|
Fiber Count
|
24 core
|
Construction
|
Loose tube
|
Fiber Type
|
Single Mode
|
Outer Jacket Material
|
PE
|
Jacket Color
|
Black
|
Cable Diameter
|
9.5mm
|
Weight
|
100KG/KM
|
Central Strength Member
|
FRP
|
Application
|
Aerial and Duct
|
Bending Radius
|
10D/20D(mm)
|
Sample status
|
We can provide free sample
|
