Product Details:
|
| Single-mode Fiber: | G657A1/ G657A2 | Jacket Color: | Yellow |
|---|---|---|---|
| No. Of Fiber: | 4/ 8/ 12/ 24 | Strength Member: | FRP |
| Jacket: | LSZH | Filler: | Aramid Yarn |
| Breakout Diameter: | 2.0mm/ 3.0mm | Application: | Indoor |
| Operate Temperature: | -40 To 80℃ | ||
| High Light: | SM G657A1 Indoor Aerial Cable,G657A1 PVC LSZH Single Mode Fiber Optic Cable,G657A1 24 Core Single Mode Fiber Optic Cable |
||

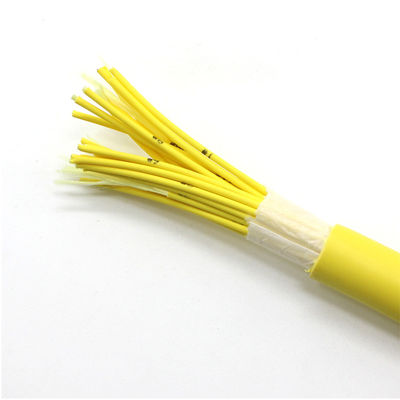

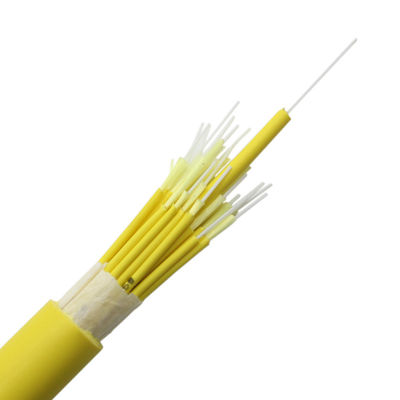

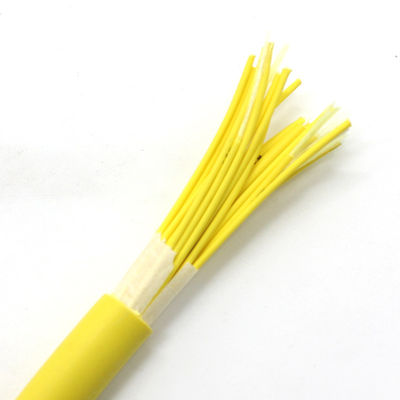

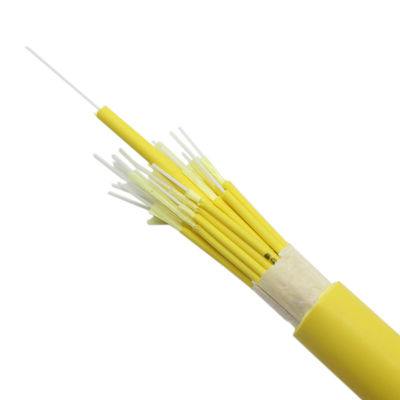

24 Core Fiber Optic Cable GJBFJH Single Mode SM G657A1 PVC LSZH Aerial Indoor Breakout Cable
Product Description:
Simplex cable(φ900um tight buffer fiber, aramid yarn as strength member) as subunit.
A fibre reinforced plastic (FRP) locates in the center of core as a non-metallic strength member.
The subunits are stranded around the cable core. the cable is completed with a PVC or LZSH jacket.
|
Fiber Count
|
Outside OD(mm)
|
Tight Buffer OD(mm)
|
Weightkg/km
|
Tensile Strength(N)
|
Crush Resistance(N/100mm)
|
Bending Radius(mm)
|
|||
|
2
|
3
|
0.9
|
15
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
4
|
5
|
0.9
|
22
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
6
|
5
|
0.9
|
23
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
8
|
5.5
|
0.9
|
28
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
12
|
6
|
0.9
|
38
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
16
|
7.2
|
0.9
|
42
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
24
|
8.3
|
0.9
|
58
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
|
48
|
10
|
0.9
|
96
|
600
|
200
|
1000
|
200
|
20D
|
10D
|
