Product Details:
|
| Conductors: | 2 | Jacket Color: | Aqua |
|---|---|---|---|
| Type: | Single Mode | Fiber Type: | OM3 |
| Application: | Telecommunication | Strength Member: | Aramid Yarn |
| Fiber Count: | 2 Core | Product Name: | Indoor Fiber Optic Cable |
| Operating Temperature: | -20℃~+70℃ | Usage: | Patchcord, Pigtail |
| High Light: | Aqua Duplex Fiber Optic Cable,Armored OM3 Indoor Fiber Optic Cable,Steel Tube OM3 Indoor Fiber Optic Cable |
||

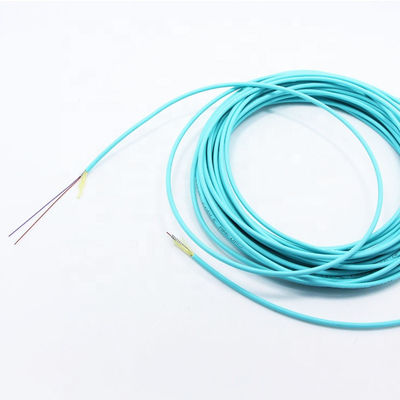

Dual Fiber Steel Tube Indoor Duplex Armored OM3 Fiber Optic Cable Aqua Color
Product Description:
Characteristics:
Select quality fiber to ensure excellent transmission performance.
Adopt strict process and raw materials control to guarantee the lifespan of 15 years.
Good uniformity of the diameter of buffer fiber and excellent strip ability.
Good performance of flame-retardant. Small bending radius.
Excellent mechanical and environmental performance.
Colored bare fiber is available.
Application:
Indoor Horizontal and Vertical Wiring
Pigtail of Communication Equipment and Flexible Connection
Fiber Optical Movable Connector
Technical data:
| Fiber Type | G652D,G655,G656,G657,OM1,OM2,OM3,OM4 |
| Buffered type | Tight buffer, Semi-tight buffer, Loose buffer |
| Coat Material | PVC, OFNR,OFNP,LSZH,LSOH,NYLON |
| OD(um) | 600,900 |
| Min Bending Radius | Dynamic 20D; Static 10D(expect G657) |
| Coating color | 12 colors available, Both 250um and 900um same colored |
| Temperature range | PVC: -20°C ~+90°C ;LSZH:-20°C ~+70°C |
Specification:
| Cable Code | Fiber Count | Cable Size (mm) | Cable Weight (kg/km) |
Mini.Bending Radius (mm) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Range of Temperature (℃) |
|||
| Dynamic | Static | Short Term | Long Term | Short Term | Long Term | |||||
| SXC16 | 1 | 1.6 | 2.9 | 60 | 30 | 60 | 30 | 500 | 100 | —20~+60 |
| SXC18 | 1 | 1.8 | 3.2 | 60 | 30 | 80 | 40 | 500 | 100 | |
| SXC20 | 1 | 2.0 | 3.5 | 60 | 30 | 100 | 60 | 500 | 100 | |
| SXC24 | 1 | 2.4 | 5.0 | 60 | 30 | 100 | 60 | 500 | 100 | |
| SXC28 | 1 | 2.8 | 5.8 | 60 | 30 | 150 | 80 | 500 | 100 | |
| SXC30 | 1 | 3.0 | 6.8 | 60 | 30 | 150 | 80 | 500 | 100 | |
| Fiber Type | G652D | 50/125 | 62.5/125 | G657A1 | G657A2 | OM3-150 | OM3-300 | OM4 | ||
| Jacket Material | PVC | LSZH | TPU | |||||||
