Home ProductsIndoor Fiber Optic Cable

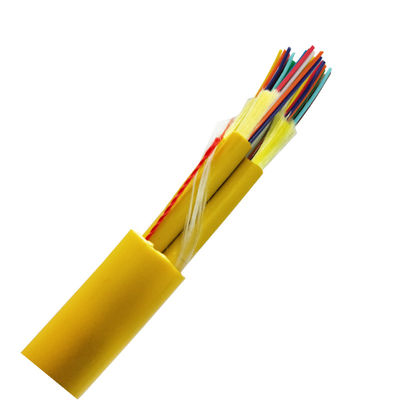

2KM/Roll Aramid Yarn 48 Core Indoor Fiber Optic Cable

Certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
China Wuhan Weiruo Communication Tech. Co.,Ltd certification
I'm Online Chat Now

2KM/Roll Aramid Yarn 48 Core Indoor Fiber Optic Cable

2KM/Roll Aramid Yarn 48 Core Indoor Fiber Optic Cable
2KM/Roll Aramid Yarn 48 Core Indoor Fiber Optic Cable 2KM/Roll Aramid Yarn 48 Core Indoor Fiber Optic Cable

Large Image :  2KM/Roll Aramid Yarn 48 Core Indoor Fiber Optic Cable

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: GJPFJH
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: USD
Packaging Details: 2KM/Roll/Carton Box
Delivery Time: 5~20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Kilometre / Month

2KM/Roll Aramid Yarn 48 Core Indoor Fiber Optic Cable

Description
Conductors: ≥10 Jacket Color: Yellow
Feature: Dielectric Fiber Type: G652D
Application: Telecommunication Strength Member: Aramid Yarn
Core: 48 Core Product Name: Indoor Fiber Optic Cable
High Light:

48 Core 2KM/Roll Fiber Optic Cable

,

2KM/Roll Indoor Fiber Optic Cable

,

2KM/Roll 48 Core Fiber Optic Cable

Indoor Communication Cable 48 Core Fiber Optic Cable Aramid Yarn 2KM/Roll


Product Description:

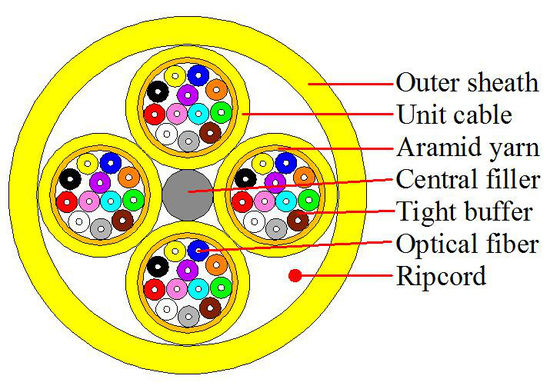

Optical cable totally dielectric, composed of optical units of the type Micromodules, within which the optical fibers of the
Single-mode type. The optical fibers have a primary acrylate coating.On the set of micromodules are placed tensile elements of wires Dielectrics. On the whole an outer layer is applied in material Non-flame-propagating thermoplastic.



Technical data:



No. of cable
48
Fiber Model
G652D
Tight Buffer
Material
PVC

Thickness(±0.03)mm
0.32

Diameter(±0.06)mm
0.9
Strength Member
Material
Aramid Yarn
Unit cable
Material
LSZH

Thickness(±0.1)mm
0.6

Diameter(±0.2)mm
5.2
Outer Sheath
Material
LSZH

Thickness(±0.1)mm
1.2

Color
Yellow
Cable Diameter(±0.5)mm
15.0
Cable Weight(±10)kg/km
207
Attenuation
1310nm
dB/km
≤0.36

1550nm

≤0.22
Allowable Tensile Strength
Short Term
N
1320

Long Term

400
Allowable Crush Resistance
Short Term
N/100mm
1000

Long Term

300
Min. bending radius
Without Tension
10.0×Cable-φ

Under Maximum Tension
20.0×Cable-φ
