Product Details:
|
| Conductors: | ≥10 | Jacket: | LSZH/PVC |
|---|---|---|---|
| Feature: | Dielectric | Fiber Type: | G652D/G657A1 |
| Application: | Telecommunication | Strength Member: | Aramid Yarn |
| Core: | 4/6/8/12/24/48 | Product Name: | Indoor Fiber Optic Cable |
| Fiber Design: | 12 Fiber/Loose Tube | ||
| High Light: | 48F PVC Fiber Optic Cable,2KM Per Roll Indoor Fiber Optic Cable,48F G652D Fiber Optic Cable |
||

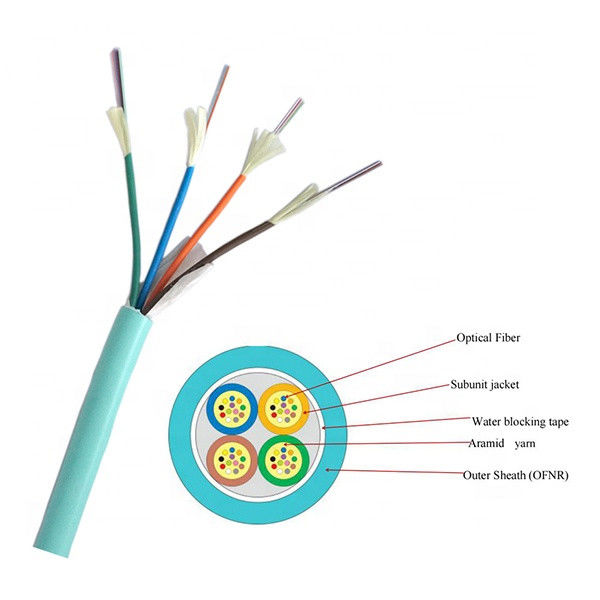

Indoor Cable 6F 48F G652D PVC Fiber Optic Cable 2KM Per Roll
Product Description:
Technical data:
|
No. of cable
|
/
|
48
|
||
|
Design(Fiber×Tube)
|
/
|
4*12
|
||
|
Strength Member
|
Material
|
/
|
Aramid Yarn
|
|
|
Inner Sheath
|
Material
|
mm
|
PVC
|
|
|
|
Diameter/Thickness
(±0.03mm) |
|
2.0/0.25
|
|
|
Outer Sheath
|
Material
|
mm
|
PVC
|
|
|
|
Thickness
(±0.2mm) |
|
1.0
|
|
|
|
colour
|
|
aqua
|
|
|
Cable Diameter(±0.2mm)
|
mm
|
8.5
|
||
|
Cable Wetght(±10.0kg/km)
|
kg/km
|
58
|
||
|
Min. bending radius
|
During installation
|
mm
|
30.0×Cable-φ
|
|
|
|
After installation
|
|
15.0×Cable-φ
|
|
|
Temperature range
(℃) |
Installation
|
℃
|
+0~+40
|
|
|
|
Transport&Storage
|
|
-10~+70
|
|
|
|
Operation
|
|
-40~+60
|
|
