Product Details:
|
| Conductors: | 8 | Jacket: | LSZH/PVC |
|---|---|---|---|
| Outer Sheath Color: | Orange | Fiber Type: | OM3 |
| Application: | Telecommunication | Strength Member: | Aramid Yarn |
| Core: | 4/6/8/12 | Product Name: | Indoor Fiber Optic Cable |
| High Light: | 0.9mm Om3 Indoor Fiber Optic Cable,0.9mm Indoor Fiber Optic Cable,0.9mm Om3 Indoor Fiber Optic Cables |
||

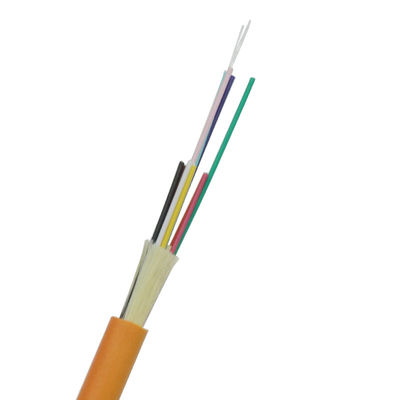

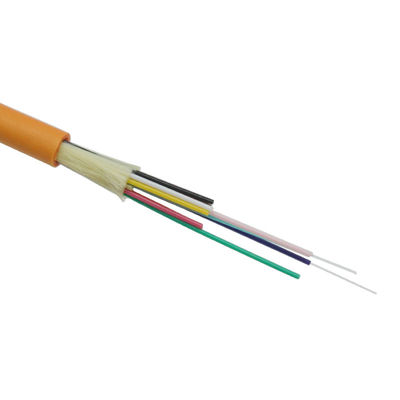

Indoor Communication Cable 0.9mm Fiber Optic Loose Tube Cable 8 Core Om3 Cable
Product Description:
Designed to improve the flexibility and Tensile Load to conveniently use the both of idoor & outdoor installation

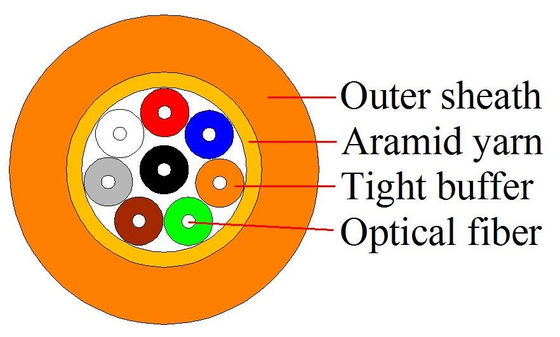

The Aramid Yarn is inserted in the number of tight buffered fiber to enhance the Tensile Load
For the cable with over 12 cores, the excellent mechanical & environmental characteristics are provided with the multiple sub unit construction
|
No. of cable
|
4
|
6
|
8
|
12
|
|||
|
Fiber Model
|
OM2
|
||||||
|
Strength Member
|
Material
|
Aramid yarn
|
|||||
|
Tight lines
|
Material
|
PVC
|
|||||
|
Diameter(±0.06)mm
|
0.9
|
||||||
|
Thickness(±0.03)mm
|
0.32
|
||||||
|
Outer Sheath
|
Material
|
LSZH
|
|||||
|
Thickness(±0.1)mm
|
0.7
|
0.8
|
0.8
|
0.8
|
|||
|
Cable Diameter( ±0.2)mm
|
5.0
|
5.4
|
5.8
|
6.2
|
|||
|
Cable Weight(±3)kg/km
|
21
|
24
|
29
|
36
|
|||
|
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
|||||
|
Under Maximum Tension
|
20.0×Cable-φ
|
||||||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
|||||
|
Transport&Storage
|
-40~+70
|
||||||
|
Operation
|
-40~+70
|
||||||
