Product Details:
|
| Conductors: | ≥10 | Jacket: | LSZH/PVC |
|---|---|---|---|
| Outer Sheath Color: | Aqua | Fiber Type: | OM3 |
| Application: | FTTH FTTB FTTX Network | Strength Member: | Aramid Yarn |
| Cable Diameter: | 3.0mm | Product Name: | Indoor Fiber Optic Cable |
| High Light: | OM3 2 Core Ofc Cable,2 Core Indoor Fiber Optic Cable,GJFJV OM3 Indoor Fiber Optic Cable |
||

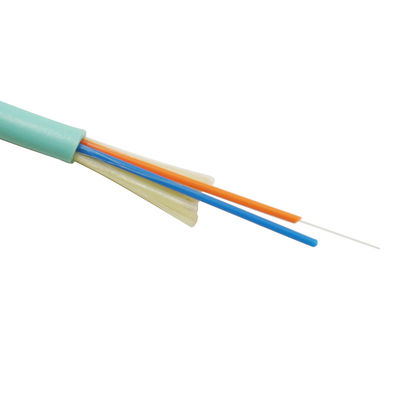

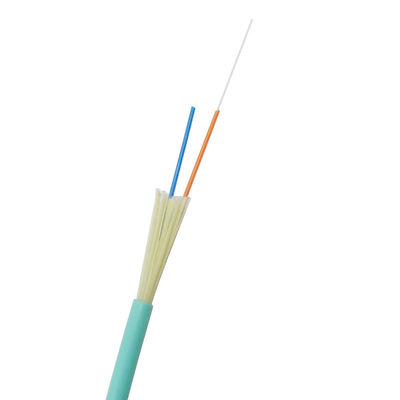

2 Core Fiber Optic Cable Indoor OM3 With Aramid Yarn GJFJV
Product Description:

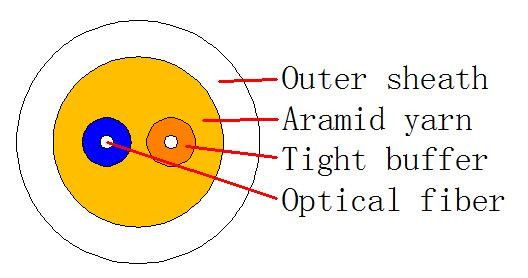

GJFJV Multi-Purpose Distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Feature:
1. Excellent stripper ability with tight buffered fiber
2. Excellent flame retardant properties
3. High tensile strength due to aramid strength member
4. Excellent corrosion resistant, waterproof, flame retardant and
5. environmental- friendly properties of the outer sheath
|
No. of cable
|
2
|
||
|
Fiber Model
|
G.657A2
|
||
|
Strength Member
|
Material
|
Aramid yarn
|
|
|
Tight buffer
|
Material
|
PVC
|
|
|
Diameter(±0.06)mm
|
0.9
|
||
|
Thickness(±0.03)mm
|
0.32
|
||
|
Outer Sheath
|
Material
|
LSZH
|
|
|
Thickness(±0.03)mm
|
0.45
|
||
|
Color
|
white
|
||
|
Cable Diameter(±0.2)mm
|
3.0
|
||
|
Cable Weight(±2)kg/km
|
7
|
||
|
Min. bending radius
|
Without Tension
|
10×Cable-φ
|
|
|
Under Maximum Tension
|
20×Cable-φ
|
||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
|
|
Transport&Storage
|
-30~+70
|
||
|
Operation
|
-30~+70
|
||
