Product Details:
|
| Conductors: | ≥10 | Jacket: | LSZH/PVC |
|---|---|---|---|
| Outer Sheath Color: | Aqua | Fiber Type: | 50/125μm Multimode |
| Application: | Telecommunication | Strength Member: | Aramid Yarn |
| Characteristic: | Flame Retardant | Warranty: | 1 Year |
| High Light: | GJFJV OM4 Multimode Fiber Cables,LSZH GJFJV OM4 Multimode Cable,GJFJV OM3 Multimode Cable |
||

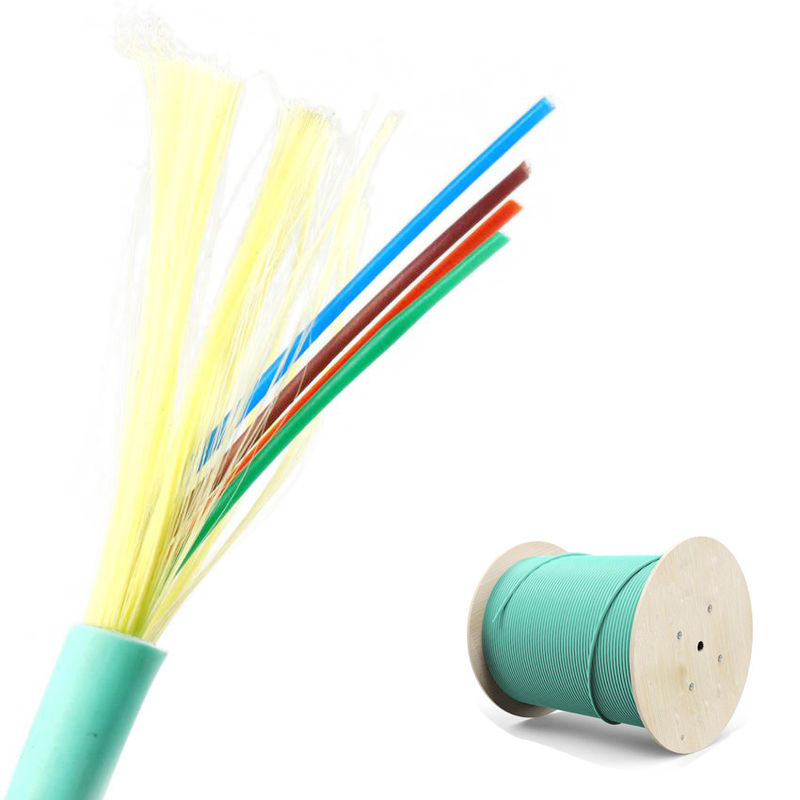

Indoor LSZH Jacket OM3 OM4 GJFJV Multimode Fiber Optic Cable
Product Description:
Designed to improve the flexibility and Tensile Load to conveniently use the both of idoor & outdoor installation
The Aramid Yarn is inserted in the number of tight buffered fiber to enhance the Tensile Load For the cable with over 12 cores, the excellent mechanical & environmental characteristics are provided with the multiple sub unit
construction.
Feature:
Single-mode or Multimode optical fiber used
Tight buffered fiber used
Ease of identification using 12 colors
Ease of handling with flexibility & light weight
Coating materials :Flame retardant PVC,PU,LSZH & etc.(Certified with UL-OFNR,GOST)
Operating Temperature Range : -20~70°C
|
No.of Cores
|
Outer Diameter
|
Weight
|
Max. Tensile Load
|
Min. Bending Radius(mm)
|
|
|
(mm)
|
(kg/km)
|
(kg.f)
|
Installation
|
Operation
|
|
|
4
|
4.7
|
20
|
66
|
D x 20
|
D x 10
|
|
6
|
5.5
|
23
|
66
|
||
|
8
|
6.1
|
39
|
66
|
||
|
12
|
6.5
|
40
|
66
|
||
|
24
|
12.8
|
140
|
132
|
||
|
36
|
16
|
190
|
150
|
||
|
48
|
18.5
|
260
|
180
|
||
