8 12 24 Core 50/125 GJFJH Multimode Indoor Fiber Optic Cable

8 12 24 Core 50/125 GJFJH Multimode Indoor Fiber Optic Cable
8 12 24 Core 50/125 GJFJH Multimode Indoor Fiber Optic Cable

Large Image :  8 12 24 Core 50/125 GJFJH Multimode Indoor Fiber Optic Cable

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: GJFJH
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: USD
Packaging Details: 2KM/Roll/Carton Box
Delivery Time: 5~20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Kilometre / Month

8 12 24 Core 50/125 GJFJH Multimode Indoor Fiber Optic Cable

Description
Model Number: Fiber Optical Cable Product Name: Indoor OM3, OM4 Cable
Model: Simplex Jacket Material: LSZH/PU/PVC
Cable Type: Tight Buffer Indoor Cable Fire Retardant: Yes
OEM: Available Application: Patchcord, Pigtail
Operating Temperature: -40deg C To + 70deg C
High Light:

50/125 GJFJH Indoor Fiber Optic Cable

,

24 Core 50/125 GJFJH Indoor Fiber Optic Cable

,

24 Core Multimode Fiber Optic Cable

8 12 24 Core Fiber Optical 50/125 GJFJH Multi Mode Indoor Optic Cable





Description:

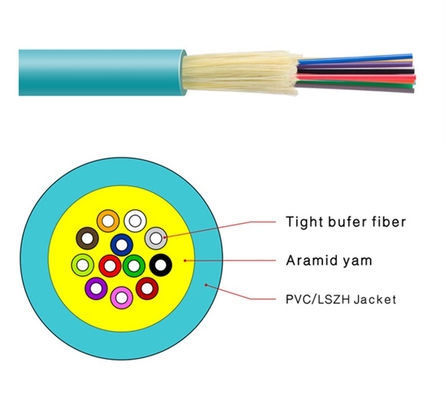

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.





Standards:

  • Cable complies with Standard YD/T 769-2003.
  • Storage/Operating Temperature: -40°C to + 70°C

Products Features:

  • Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
  • Good performance of flame-retardant
  • Steady performance both in extremely high and low temperature.
  • Excellent geometrical dimension of the fiber.





Optical Characteristics:



  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm
