Product Details:
|
| Model Number: | Fiber Optical Cable | Product Name: | Indoor OM3, OM4 Cable |
|---|---|---|---|
| Model: | Simplex | Jacket Material: | LSZH/PVC |
| Fiber Type: | G652D/OM1/OM2/OM3 | Fire Retardant: | Yes |
| OEM: | Available | Application: | Patchcord, Pigtail |
Indoor Round Cable Multi Cores High Speed Fiber Optic Cable From Manufacturer
Description:

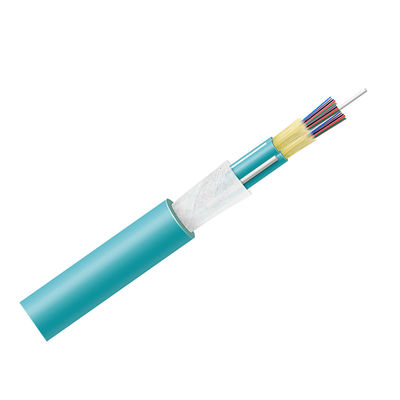

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Standards:
Products Features:
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
