Product Details:
|
| Type: | Optical Fiber Cable | Single-mode Fiber: | G657A2 |
|---|---|---|---|
| Number Of Fiber: | 8 | Cable Type: | Indoor |
| Use: | FTTH | Core Number: | 6/12/24 |
| Outer Diameter: | 4.5-8.0mm | Outer Sheath: | LSZH/PVC |
| OEM: | Available | ||
| High Light: | G657A2 OM3 Indoor Fiber Optic Cable,G657A2 6 Strand Multimode Fiber Optic Cable,G657A2 6 Strand Indoor Fiber Optic Cable |
||

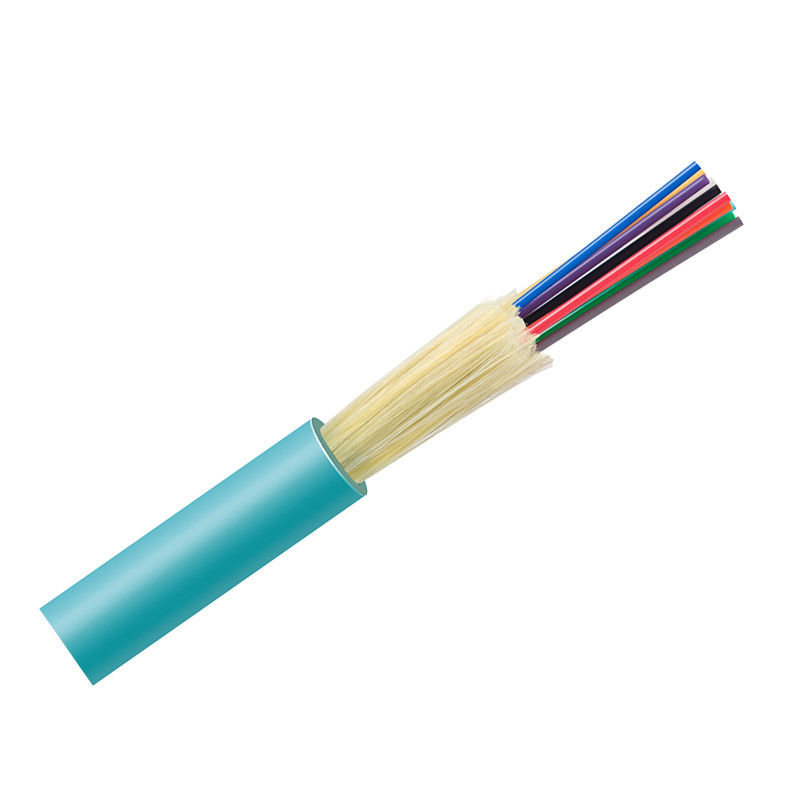

Multimode Indoor Fiber Optic Cable OM3 Optical Fiber 6 Strand
Product Description:

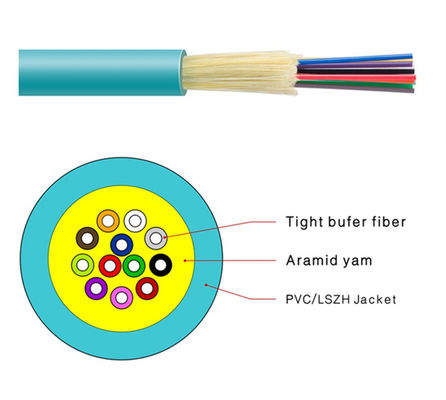

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Standards:
Cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C
Products Features:
Small diameter, light weight,flame retardant,excellent strippability
Low-attenuation, High flexibility
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Cable diameter:
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
Mechanical Characteristics:
| Tensile Strength | Long Term | 80N | 60 | 50 |
| Short Term | 150N | 120 | 100 | |
| Crush Resistance | Long Term | 100N/100mm | 100N/100mm | 100N/100mm |
| Short Term | 500N/100mm | 500N/100mm | 500N/100mm | |
| Bending Radius | Dynamic | 20XD | 20XD | 20XD |
| Static | 10XD | 10XD | 10XD |
