Product Details:
|
| Conductors: | 8 | Fiber Model: | OM3 |
|---|---|---|---|
| Cores: | 4~48cores | Fiber Type: | Tight Buffer Fiber |
| Material: | PVC/LSZH,Aramid Yarn | Color: | As Your Request |
| Attenuation: | 800nm~1300nm | Diameter: | 600μm Or 900μm |
| Bandwidth: | 850nm~1300nm | Operating Temperature: | -40~70°C |
| Application: | Indoor | ||
| High Light: | Tight Buffer 8 Core Single Mode Fiber Optic Cable,Communication GJFJV 8 Core Single Mode Cable,Communication GJFJV 8 Core SingleMode Cable |
||
Decription
Designed to improve the flexibility and Tensile Load to conveniently use the both of idoor & outdoor installation

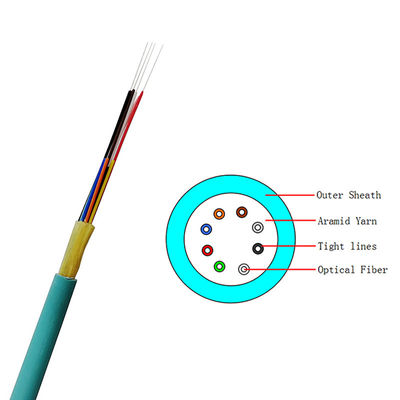

The Aramid Yarn is inserted in the number of tight buffered fiber to enhance the Tensile Load For the cable with over 12 cores, the excellent mechanical & environmental characteristics are provided with the multiple sub unit construction
Features
* Single-mode or Multimode optical fiber used
* Tight buffered fiber used
* Ease of identification using 12 colors
* Ease of handling with flexibility & light weight
* Coating materials :Flame retardant PVC,PU,LSZH & etc.(Certified with UL-OFNR,GOST)
* Operating Temperature Range : -20~70°C
Technical Data
|
No.of Cores
|
Outer Diameter
|
Weight
|
Max. Tensile Load
|
Min. Bending Radius(mm)
|
|
|
(mm)
|
(kg/km)
|
(kg.f)
|
Installation
|
Operation
|
|
|
4
|
4.7
|
20
|
66
|
D x 20
|
D x 10
|
|
6
|
5.5
|
23
|
66
|
||
|
8
|
6.1
|
39
|
66
|
||
|
12
|
6.5
|
40
|
66
|
||
|
24
|
12.8
|
140
|
132
|
||
|
36
|
16
|
190
|
150
|
||
|
48
|
18.5
|
260
|
180
|
||
