Product Details:
|
| Conductors: | ≥10 | Fiber Model: | G657A2 |
|---|---|---|---|
| Outer Sheath: | LSZH-FRP | Application: | Telecommunication |
| Strength Member: | FRP | Outer Jacket: | LSZH |
| Core: | 72 Cores | Certificate: | CE/ROHS/ISO9001 |
| High Light: | GJFZY 72 Core 1km Fiber Optic Cable,GJFZY 72 Core 1km Fiber Optic Cables,72 Core GJFZY 1km Fiber Optic Cables |
||
GJFZY 72 Cores Indoor Fiber Optical Cable FRP Strength Member Fiber Optical Cable 1km
Product Description

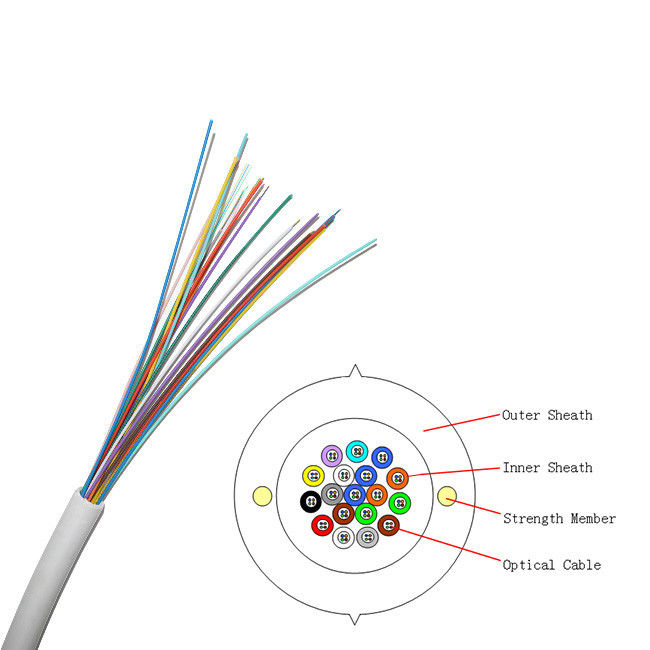

GJFZY is a new type of detachable indoor optical cable. Its structure consists of several colored optical fibers embedded in a loose sleeve made of LSZH to form an optical unit. Then several optical units are combined together. Finally, the LSZH jacket is extruded and two FRPs are placed symmetrically in the jacket.
Features
1.High density, large capacity and compact structure.
2.All dielectric structure, free from electromagnetic interference.
3.The design is scientific and reasonable, the processing technology is rigorous, and the product performance is good.
4.The outer sheath material has the advantages of corrosion resistance, waterproof, flame retardant, environmental protection and so on.
Datasheet
|
No. of cable
|
36
|
72
|
|
|
Fiber Model
|
G.657A2
|
||
|
|
Material
|
LSZH
|
|
|
Thickness
|
0.17(±0.02)mm
|
||
|
Diameter
|
0.9(±0.05)mm
|
||
|
|
Material
|
FRP
|
|
|
Diameter
|
1.0(±0.05)mm
|
||
|
No.
|
2
|
||
|
|
Material
|
LSZH-FR
|
|
|
Color
|
White
|
||
|
Cable Diameter
|
10.5±0.5
|
11.5±0.5
|
|
|
Max. allowable tension(Short-term)
|
600N
|
||
|
Max. allowable tension(Long-term)
|
200N
|
||
|
Crush resistance test
|
1000N/10cm
|
||
|
|
Static
|
105mm
|
115mm
|
|
dynamic
|
210mm
|
230mm
|
|
|
|
Installation
|
-5~+60
|
|
|
Transport&Storage
|
-40~+70
|
||
|
Operation
|
-5~+60
|
||
