Product Details:
|
| Model Number: | GJFJV | Conductors: | ≥10 |
|---|---|---|---|
| Fiber Model: | OM3 | Number Of Cores: | 4~48 Cores |
| Fiber Type: | Tight Buffer Fiber | Material: | PVC/LSZH,Aramid Yarn |
| Color: | As Your Request | Attenuation: | 800nm~1300nm |
| Diameter: | 600μm Or 900μm | Bandwidth: | 850nm~1300nm |
| Operating Temperature: | -20~70°C | Application: | Indoor Telecommunication |
| High Light: | GJFJV 36 Core Indoor Fiber Optic Cable,GJFJV 36 Core Fiber Optic Cable,GJFJV Indoor Fiber Optic Cable |
||

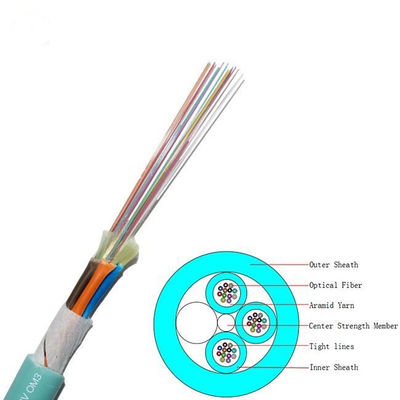

OM3 36 Core Fiber Optic Cable Per Meter Indoor Tight Buffer OM3 36 Core Fiber Optical Cable GJFJV
Product Description
GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant)
The tight buffer fibre is manufactured by sheathing the fibre with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fibre, specific production equipment and accurately designed tools ensure a good performance of the product.
Features
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards.
The mechanical characteristics meet the requirements of relevant stands
Soft, flexible easy to splice and with big capacity data transmission
Technical Data
| No. of cable | 8 | 12 | 24 | 36 | 48 | |||
| Fiber Model | OM3 | |||||||
| Tight lines | Material | PVC/LSZH | ||||||
| Thickness(±0.03)mm | 0.32 | |||||||
| Diameter(±0.06)mm | 0.9 | |||||||
| Center Strength Member | Material | FRP | ||||||
| Diameter(±0.1)mm | — | — | — | 0.5 | 0.5 | |||
| Strength Member | Material | Aramid Yarn | ||||||
| Inner Sheath | Material | PVC/LSZH | ||||||
| Diameter(±0.1)mm | — | — | — | 0.8 | 0.8 | |||
| Colour | Aqua | |||||||
| Outer Sheath | Material | PVC | ||||||
| Thickness(±0.1)mm | 0.9 | 1.0 | 1.0 | 1.5 | 1.5 | |||
| Colour | Aqua | |||||||
| Cable Diameter(±0.2)mm | 5.8 | 6.2 | 8.5 | 15.1 | 15.1 | |||
| Cable Wetght(±5)kg/km | 31 | 41 | 60 | 238 | 235 | |||
| Attenuation | 850nm | dB/km | ≤2.5 | |||||
| 1300nm | ≤0.7 | |||||||
| Bandwidth | 850nm | MHz.km | ≥3500 | |||||
| 1300nm | ≥500 | |||||||
| Allowable Tensile Strength | Short Term | N | 660 | 660 | 660 | 1320 | 1320 | |
| Long Term | 200 | 200 | 200 | 660 | 660 | |||
| Allowable Crush Resistance | Short Term | N/100mm | 1000 | 1000 | 1000 | 1500 | 1500 | |
| Long Term | 200 | 200 | 200 | 300 | 300 | |||
| Min. bending radius | Without Tension | 10.0×Cable-φ | ||||||
| Under Maximum Tension | 20.0×Cable-φ | |||||||
|
Temperature range (℃) |
Installation | -20~+60 | ||||||
| Transport&Storage | -40~+70 | |||||||
| Operation |
-40~+70 |
|||||||
