Product Details:
|
| Conductors: | 2 | No. Of Fiber: | 2 |
|---|---|---|---|
| Outer Sheath Color: | Aqua | Strength Member: | Aramid Yarn |
| Tight Buffer: | PVC | Outer Sheath: | LSZH |
| Cable Diameter: | 3.0mm | Model Number: | GJPJV |
Description

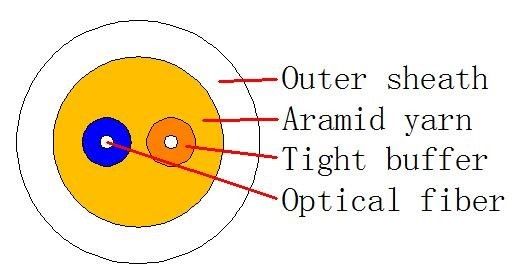

GJFJV Multi-Purpose Distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Features
1. Excellent stripper ability with tight buffered fiber
2. Excellent flame retardant properties
3. High tensile strength due to aramid strength member
4. Excellent corrosion resistant, waterproof, flame retardant and
5. environmental- friendly properties of the outer sheath
Technical Data
|
No. of cable
|
2
|
||
|
Fiber Model
|
G.657A2
|
||
|
Strength Member
|
Material
|
Aramid yarn
|
|
|
Tight buffer
|
Material
|
PVC
|
|
|
Diameter(±0.06)mm
|
0.9
|
||
|
Thickness(±0.03)mm
|
0.32
|
||
|
Outer Sheath
|
Material
|
LSZH
|
|
|
Thickness(±0.03)mm
|
0.45
|
||
|
Color
|
white
|
||
|
Cable Diameter(±0.2)mm
|
3.0
|
||
|
Cable Weight(±2)kg/km
|
7
|
||
|
Min. bending radius
|
Without Tension
|
10×Cable-φ
|
|
|
Under Maximum Tension
|
20×Cable-φ
|
||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
|
|
Transport&Storage
|
-30~+70
|
||
|
Operation
|
-30~+70
|
||
