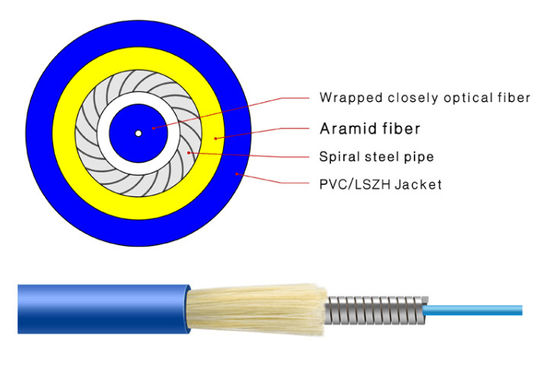

Indoor Aramid Yarn FRP Strength 4 Core Fiber Optic Cable

Indoor Aramid Yarn FRP Strength 4 Core Fiber Optic Cable
Indoor Aramid Yarn FRP Strength 4 Core Fiber Optic Cable

Large Image :  Indoor Aramid Yarn FRP Strength 4 Core Fiber Optic Cable

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: GJFJV
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: USD
Packaging Details: 2KM/Roll/Carton Box
Delivery Time: 5~20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Kilometre / Month
Contact Now

Indoor Aramid Yarn FRP Strength 4 Core Fiber Optic Cable

Description
Number Of Conductors: 8 Type: Indoor Fiber Opical Cable
Fiber Type: OM3, Multimode Outer Sheath: PVC
Inner Sheath: PVC/LSZH Fiber Count: 1-144core
Strength Member: FRP Color: Aqua
High Light:

FRP Strength Aramid Yarn Fiber Optic Cables

,

FRP Strength Aramid Yarn 4 Core Fiber Optic Cable

,

FRP Strength Aramid Yarn Fiber Optic Cable

Indoor Optical Fibr Cable Aramid Yarn FRP Strength 4 Core Fiber Optic Cable





Feature



Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards.
The mechanical characteristics meet the requirements of relevant stands
Soft, flexible easy to splice and with big capacity data transmission







Technical Data



No. of cable
8
12
24
36
48
Fiber Model
OM3

Tight lines
Material
PVC/LSZH
Thickness(±0.03)mm
0.32
Diameter(±0.06)mm
0.9

Center Strength Member
Material
FRP
Diameter(±0.1)mm
—
—
—
0.5
0.5
Strength Member
Material
Aramid Yarn

Inner Sheath
Material
PVC/LSZH
Diameter(±0.1)mm
—
—
—
0.8
0.8
Colour
Aqua

Outer Sheath
Material
PVC
Thickness(±0.1)mm
0.9
1
1
1.5
1.5
Colour
Aqua
Cable Diameter(±0.2)mm
5.8
6.2
8.5
15.1
15.1
Cable Wetght(±5)kg/km
31
41
60
238
235

Attenuation(dB/km)
850nm
≤2.5
1300nm
≤0.7

Bandwidth(MHz.km)
850nm
≥3500
1300nm
≥500

Allowable Tensile Strength(N)
Short Term
660
660
660
1320
1320
Long Term
200
200
200
660
660
Allowable Crush Resistance(N/100mm)
Short Term
1000
1000
1000
1500
1500
Long Term
200
200
200
300
300

Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ

Temperature range(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70









Tag:

GJFJV Tight Buffer Fiber Optic Cable,

GJFJV OM3 Indoor Fiber Optic Cable,

48 Core Indoor Fiber Optic Cable
