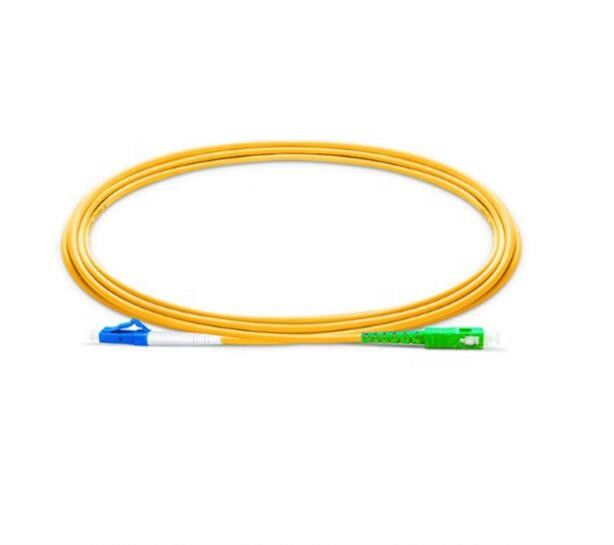

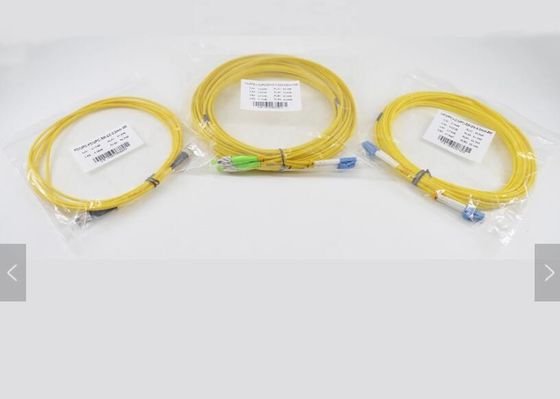

LC To SC Fiber Optic Patch Cord

LC To SC Fiber Optic Patch Cord
LC To SC Fiber Optic Patch Cord LC To SC Fiber Optic Patch Cord LC To SC Fiber Optic Patch Cord LC To SC Fiber Optic Patch Cord

Large Image :  LC To SC Fiber Optic Patch Cord

Product Details:
Place of Origin: China
Brand Name: WRC
Certification: ISO9001
Model Number: LC To SC Fiber Optic Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 20 sets
Price: USD0.70-USD15/set
Packaging Details: Export Carton Packing
Delivery Time: 5-20 days
Payment Terms: Western Union, MoneyGram, L/C, T/T

LC To SC Fiber Optic Patch Cord

Description
Connector: SC/FC/LC/ST Fiber Type: Singlemode/Multimode
Fiber Core: Simplex/Duplex Cable Diameter: 0.9mm/2.0mm/3.0mm
Color: Orange/Yellow/ Blue/Aqua Exchangeability(dB): ≤0.2
Cable Material: PVC, LSZH, OM3, OFNR, OFNP, Plenum
High Light:

0.9mm LC To SC Patch Cord

,

2.0mm LC To SC Fiber Optic Patch Cord

,

3.0mm LC To SC Fiber Optic Patch Cord


Fiber Optic Patch Cord

Feature

-Low insertion loss, high return loss;
-Excellent mechanical endurance;
-High credibility and stability;
-Good in repeatability and exchangeability.


Application

-Testing equipment;
-FTTX+LAN;
-Optical fiber CATV;
-Optical communication system;
-Telecommunication;
-High bit rate data transmission.



Description

Range of Mode Single mode or Multi mode
Cable Type Simplex, Duplex Ziocord. or Multi-cores
Connector Style SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type PC, UPC, APC
Cable Diameter 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket PVC /LSZH/OFNP
Jacket Color SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -25℃ to +70℃
Storage Temp. -40℃ to +85℃



Technical Data

Connector Type Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.2 ≥50 ≤0.15 ≥50
UPC ≤0.2 ≥55 ≤0.15 ≥55
APC ≤0.2 ≥60 ≤0.15 ≥60
MM PC ≤0.2 ≥35 ≤0.15 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥60
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /







LC To SC Fiber Optic Patch Cord 0

LC To SC Fiber Optic Patch Cord 1





Item
Parameter
Connector Type
SC/FC/LC/ST
Fiber Type
Singlemode/Multimode
Cable Diameter
0.9/2.0/3.0mm
Color
Yellow/Blue Or Customized
Outer Jacket
PVC/LSZH/OFNP/OFNR






Various Choice to meet your different needs

LC To SC Fiber Optic Patch Cord 2
