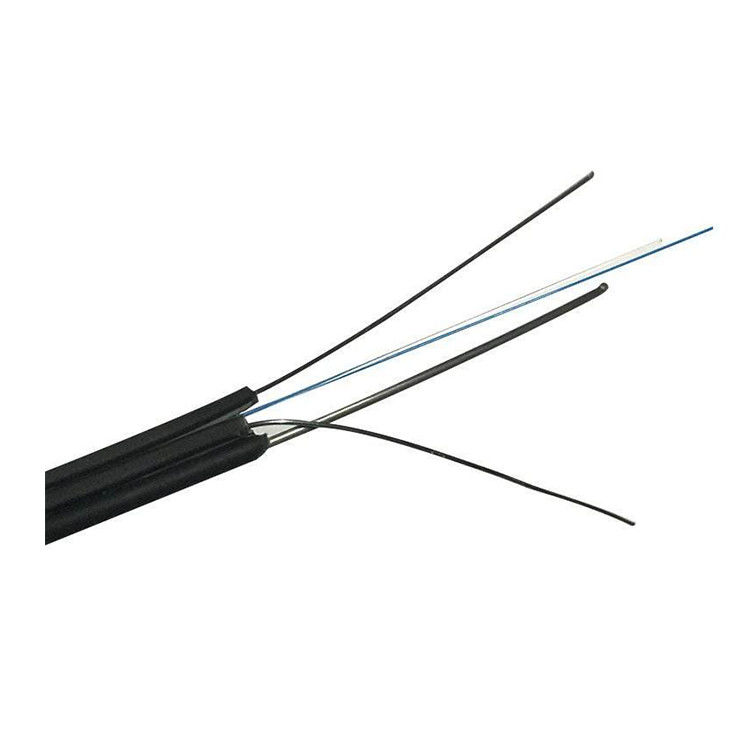

GJYXH03 Fiber Optic Drop Cable

GJYXH03 Fiber Optic Drop Cable
GJYXH03 Fiber Optic Drop Cable

Large Image :  GJYXH03 Fiber Optic Drop Cable

Product Details:
Place of Origin: China
Brand Name: Weiroct
Certification: ISO-9001
Model Number: GJYXH
Payment & Shipping Terms:
Minimum Order Quantity: 1KM
Price: USD
Packaging Details: 2KM/Roll/Carton Box
Delivery Time: 5-7 Days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000 Kilometre / Month

GJYXH03 Fiber Optic Drop Cable

Description
Model Number: FTTH Conductors: ≥10
Type: Single Mode Core: G652D, G657A1, G657A2
Application: Duct/Aerial/Direct Buried Jacket Sheath: PVC, LSZH
High Light:

GJYXH03 1 Core Fiber Optic Cable

,

GJYXH03 1 Core Fiber Optic Drop Cable

,

GJYXH03 Fiber Optic Drop Cable

FTTX 1core Fiber Optic Drop Cable GJYXH03





Description:



In the GJYXH03 cable,fibre ribbons are positioned in the loose tubes,which are made of high modulus plastic materials, while the loose tubes strand together around metallic central strength member into a compact and circular cable core. For certain high fibre count cables, the strength member would be covered with polythylene(PE).The water-blocking materials are distributed into interstices of the cable core and the APL is longitudinally applied around the cable core before a PE sheath is extruded over it.





Fiber Parameters:



Cores no. OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius
Static/Dynamic
mm
1 2.0x5.0 20 100/200 1000/2200 10D/20D
2 2.0x5.0 20 100/200 1000/2200 10D/20D
4 2.0x5.0 20 100/200 1000/2200 10D/20D
6 2.0x5.5 21 100/200 1000/2200 10D/20D
8 2.0x6.0 23 100/200 1000/2200 10D/20D
12 2.0x7.0 25 100/200 1000/2200 10D/20D
