Product Details:
|
| High Light: | 24 Core FTTX ADSS Fiber Optic Cable,ADSS 24 Core FTTX Cable,24 Core Outdoor Optical Fiber Cable |
||
|---|---|---|---|
Outdoor Optical Fiber Cable Double Jacket 24 Core Fibra Optica Adss In Fttx Network
Description:

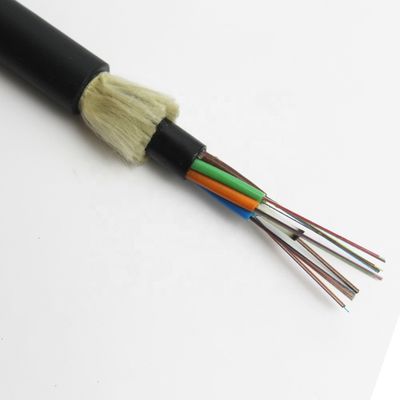

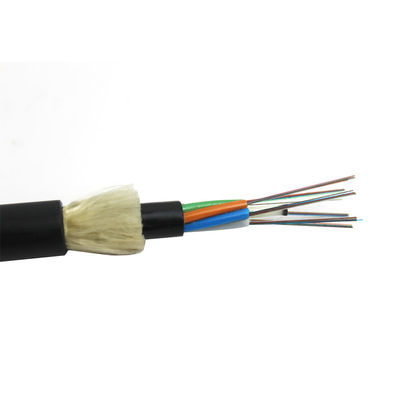

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Application:
1. Outdoor aerial applications
2. Low voltage transmission system(≤12 kV)
3. Railway & Telecommunication pole route
4. Subscriber & Local Area Network
5. Voice, data, video & imaging system
Cross Section:
1. Can be installed without shutting off the power
2. Light weight and small diameter reducing the load cause -d by ice and wind and the load on towers and backprops
3. Large span lengths
4. Good performance of tensile strength and temperature
5. The design life span is 30 years

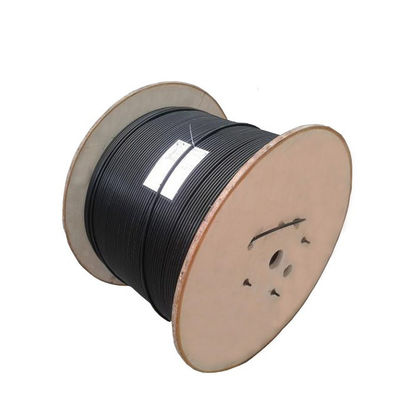

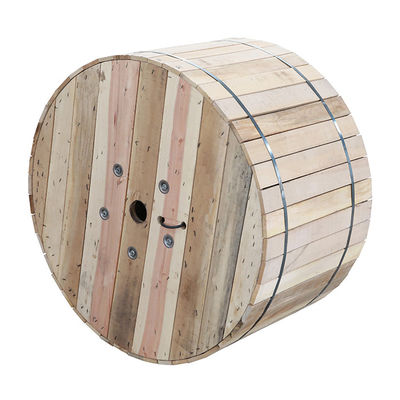

6. Package : 2~4km/ wooden drum
Specification:
