Product Details:
|
| Name: | G652D 2-48 Cores Outdoor Steel Stranded Figure 8 Armored Fiber Aerial Optic Cable | Fiber Type: | G652D |
|---|---|---|---|
| Fiber Count: | 24F | Type: | Fiber Optic Cable |
| Cable Diameter: | 9.8*18.5mm | Strength Member: | Steel Wire |
| Installation: | Self-supporting/Aerial | Application: | Aerial Installation |
| Messenger Member: | Steel Wire | Certification: | ISO9001/CE |
| Fiber Options: | ITU G652D ,G657A,OM1,OM2,OM3,OM4 | Color: | Customized |
| High Light: | G652D Aerial Figure 8 Fiber Optic Cable,Armored Aerial Figure 8 Fiber Optic Cable,G652D Aerial Fiber Optic Cable |
||

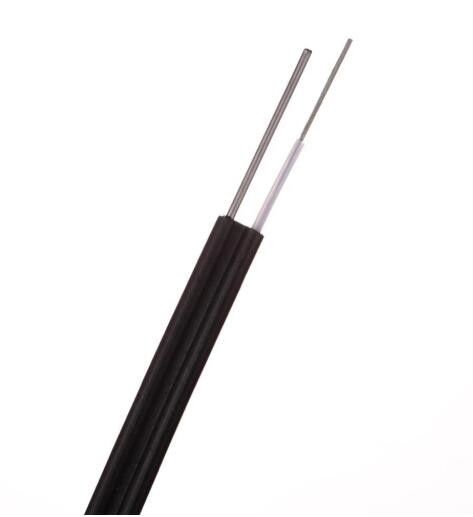

G652D 2-48 cores Outdoor Steel Stranded Figure 8 Armored Fiber Aerial Optic Cable
Description of G652D 2-48 cores Outdoor Steel Stranded Figure 8 Armored Fiber Aerial Optic Cable
GYFTC8Y fiber optic aerial cable is non armor 7x1.0mm Steel strand wire self-supporting cable.The loose tube are made of high modulus plastic (PBT), which are filled with water resistant gel. Loose tube are stranded around the non-metallic strengthen member (FRP) . Outer sheath is made of UV resistance PE jacket. Figure 8 self-supporting structure provide high tensile strength and enables easy and cost saving aerial installations. The Steel strand wire self-supporting member gives high tensile resistant.
Features of G652D 2-48 cores Outdoor Steel Stranded Figure 8 Armored Fiber Aerial Optic Cable
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. Light weight design bring low cost and also easy installation
7.Anti-electromagnetism ability.
8.Small cable diameter, light cable weight, self-supporting,
9.Easily installation.
Parameter Data of G652D 2-48 cores Outdoor Steel Stranded Figure 8 Armored Fiber Aerial Optic Cable
Structure and Technical Specifications GYXTC8Y(2-24F)
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 6.0*12.5 | 85 | 4000 | 2000 | 200 | 100 |
| >12 | Available upon customer's request | |||||
Structure and Technical Specifications GYTC8Y(2-288F)
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 9.2*17.2 | 150 | 6 | 5 | 7000 | 3000 | 1000 | 300 |
| 32~48 | 10.2*18.2 | 172 | 8 | 6 | 7000 | 3000 | 1000 | 300 |
| 50~72 | 11.1*19.1 | 177 | 12 | 6 | 7000 | 3000 | 1000 | 300 |
| 74~96 | 12.4*20.4 | 201 | 12 | 8 | 7000 | 3000 | 1000 | 300 |
| >98 | Available upon customer's request | |||||||
Technical Parameters:
Cable count |
Out sheath diameter |
Weight |
Minimum allowable Tensile Strength(N) |
Minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| (MM) | (kg) | Short term |
Long term |
Short term |
Long term |
Short term |
Long term |
(℃) |
|
| 6 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 12 | 3.0 x 9.8 | 54 | 1000 | 200 | 1000 | 200 | 20D | 10D | -40 ~ +70 |
| 24 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 36 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 42 | 7.0x14.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 48 | 7.0x15.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 72 | 7.0x15.5 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
| 144 | 7.0x15.5 | 285 | 3000 | 1000 | 3000 | 1000 | 20D | 10D | -40 ~ +70 |
|
G.652D Single Mode Optical Fiber (B1.3)
|
|||
|
Item
|
Standard
|
Unit
|
|
|
Attenuation
|
1310nm
|
≤0.35
|
dB/km
|
|
1383nm
|
≤0.33
|
dB/km
|
|
|
1550nm
|
≤0.21
|
dB/km
|
|
|
1625nm
|
≤0.24
|
dB/km
|
|
|
Dispersion
|
1288nm～1339nm
|
|D|≤3.4
|
ps/(nm·km)
|
|
1271nm～1360nm
|
|D|≤5.3
|
ps/(nm·km)
|
|
|
1550nm
|
≤17.8
|
ps/(nm·km)
|
|
|
Zero-dispersion wavelength
|
1300～1322
|
(nm)
|
|
|
Zero-dispersion slope
|
≤0.091
|
ps/(nm2•km)
|
|
|
PMD
|
PMD single fiber
|
≤0.15
|
ps/√km
|
|
PMD Q links
|
≤0.08
|
ps/√km
|
|
|
MDF
|
1310nm
|
9.2±0.4
|
um
|
|
Cladding diameter
|
125±1.0
|
μm
|
|
|
Cladding non-circularity
|
≤0.8
|
%
|
|
|
Core-cladding concentricity error
|
≤0.6
|
μm
|
|
|
Coating diameter
|
245±10
|
μm
|
|
|
Cladding/coating concentricity error
|
≤10.0
|
μm
|
|
|
Cut-off wavelength
|
1.18～1.33
|
μm
|
|
|
Macrobend attenuation
(ф 50mm, 100 cycles)
|
1550nm
|
≤0.05
|
dB
|
|
1625nm
|
≤0.05
|
dB
|
|
|
Bending radius
|
≥5
|
m
|
|
|
Dynamic fatigue parameters
|
≥20
|
nd
|
|
|
Additional Attenuation
@1310nm &
@1550nm
|
Temperature cycling test:
(-60℃～85℃, 3 cycles) |
≤0.03
|
dB/km
|
|
Water soak test:
(23℃ for 30 days) |
≤0.03
|
dB/km
|
|
|
Damp heat test:
(85℃, 85%RH for 30 days) |
≤0.03
|
dB/km
|
|
|
Thermal aging test (85℃ for 30 days)
|
≤0.03
|
dB/km
|
|
|
Warm water soak test: (60℃ for 15 days)
|
≤0.03
|
dB/km
|
|
FAQ
Payment
For large orders, T/T , L/C, and E-credit lines are all offered.
For small orders, credit-cards are accepted.
Shipping & Delivery
We will send the products within 10-30 days.
We ship small batched by air, or large orders by container.
Return and WarrantyAll products have been tested before ship out
All products have 2 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

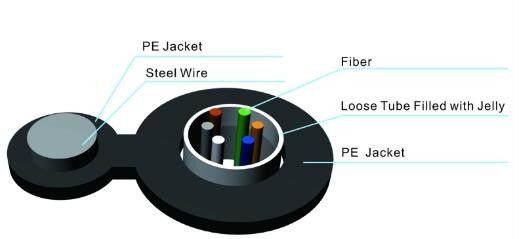

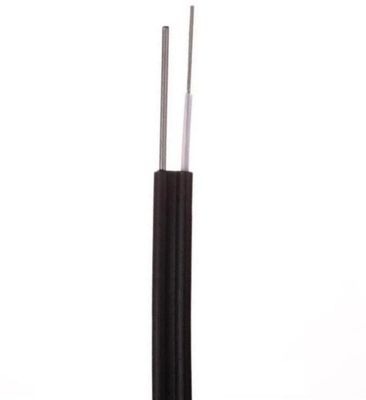

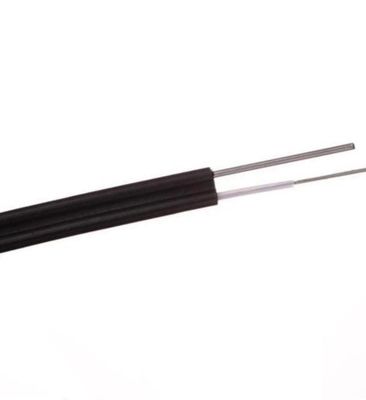

Drawings of G652D 2-48 cores Outdoor Steel Stranded Figure 8 Armored Fiber Aerial Optic Cable
