1 Core FTTH Drop Cable

1 Core FTTH Drop Cable
1 Core FTTH Drop Cable 1 Core FTTH Drop Cable 1 Core FTTH Drop Cable 1 Core FTTH Drop Cable 1 Core FTTH Drop Cable 1 Core FTTH Drop Cable

Large Image :  1 Core FTTH Drop Cable

Product Details:
Place of Origin: China
Brand Name: WRC-1 Core Ftth Indoor Drop Cable Home Frp Kfrp Outdoor Fiber Optic Cable
Certification: ISO9001
Model Number: 1 Core Ftth Indoor Drop Cable Home Frp Kfrp Outdoor Fiber Optic Cable
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD100-USD1030/Km
Packaging Details: Export Carton Packing
Delivery Time: 5-20 days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 1000 Km per Day

1 Core FTTH Drop Cable

Description
Name: 1 Core Ftth Indoor Drop Cable Home Frp Kfrp Outdoor Fiber Optic Cable Wavelength: 1260 To 1650nm
Type: Fiber Optic Plc Splitter, 1x2 1x4 1x8 1x16 2x8 2x16 Connector: SC LC
Cable Type:: G657A1 Or As Customers' Order Operating Temperation: -40℃ To 85℃
No. Of Fiber: 2 4 8 16 Usage: FTTH
High Light:

1 Core FTTH Drop Cable

,

Kfrp FTTH Drop Cable

,

Frp Indoor Drop Cable

1 Core Ftth Indoor Drop Cable Home Frp Kfrp Outdoor Fiber Optic Cable



Description of 1 Core Ftth Indoor Drop Cable Home Frp Kfrp Outdoor Fiber Optic Cable

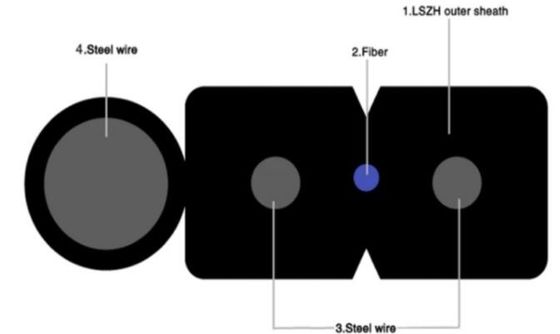

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. Finally this cable is completed with black or white LSZH sheath.

Features of 1 Core Ftth Indoor Drop Cable Home Frp Kfrp Outdoor Fiber Optic Cable

1, High tensile of the diameter1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, Single mode
6, (2.0±0.2)x(5.0±0.2)mm
7, Compliant with Telcordia GR-326-CORE specification

Technical data of 1 Core Ftth Indoor Drop Cable Home Frp Kfrp Outdoor Fiber Optic Cable
Fiber count 1F/2F/4F
Attenuation 1310nm:≤0.36 1550nm:≤0.22
Color Of fiber Blue Orange Green Brown
Fiber Type G652D/G657A1/G657A2
Strength member Steel wire/FRP/KFRP
Outer sheath LSZH Lower smoke zero halogen frame retardant & UV Anti
Cable Diameter dimensions 2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range -20 ℃ to + 70 ℃
Installation temperature range -0 ℃ to + 60 ℃
Transport and storage temperature range -20 ℃ to + 70 ℃
Tension Load (N) Short term :800N Long term :500N
Crush Load(N) Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius 30 x OD
Minimal operation bending radius 15 x OD
Cable marking The marking length 1meter apart , as required

G.652D Single Mode Optical Fiber (B1.3)
Item
Standard
Unit


Attenuation
1310nm
≤0.35
dB/km
1383nm
≤0.33
dB/km
1550nm
≤0.21
dB/km
1625nm
≤0.24
dB/km

Dispersion
1288nm~1339nm
|D|≤3.4
ps/(nm·km)
1271nm~1360nm
|D|≤5.3
ps/(nm·km)
1550nm
≤17.8
ps/(nm·km)
Zero-dispersion wavelength
1300~1322
(nm)
Zero-dispersion slope
≤0.091
ps/(nm2•km)

PMD
PMD single fiber
≤0.15
ps/√km
PMD Q links
≤0.08
ps/√km
MDF
1310nm
9.2±0.4
um
Cladding diameter
125±1.0
μm
Cladding non-circularity
≤0.8
%
Core-cladding concentricity error
≤0.6
μm
Coating diameter
245±10
μm
Cladding/coating concentricity error
≤10.0
μm
Cut-off wavelength
1.18~1.33
μm

Macrobend attenuation
(ф 50mm, 100 cycles)
1550nm
≤0.05
dB
1625nm
≤0.05
dB
Bending radius
≥5
m
Dynamic fatigue parameters
≥20
nd



Additional Attenuation
@1310nm &
@1550nm
Temperature cycling test:
(-60℃~85℃, 3 cycles)
≤0.03
dB/km
Water soak test:
(23℃ for 30 days)
≤0.03
dB/km
Damp heat test:
(85℃, 85%RH for 30 days)
≤0.03
dB/km

Thermal aging test

(85℃ for 30 days)
≤0.03
dB/km
Warm water soak test: (60℃ for 15 days)
≤0.03
dB/km

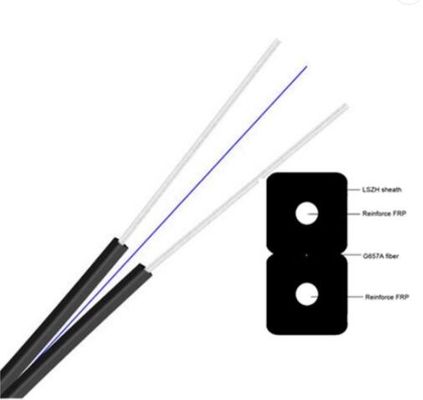

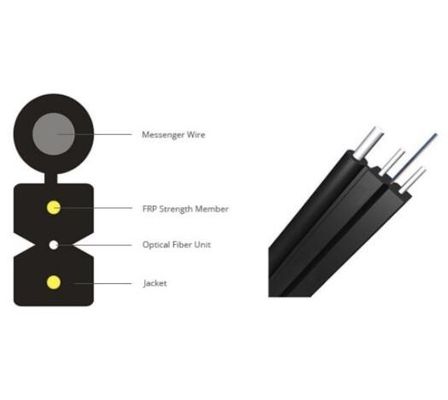

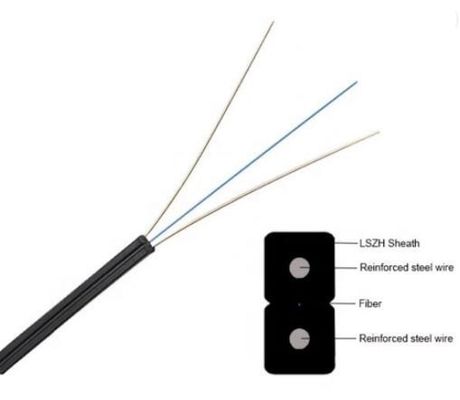

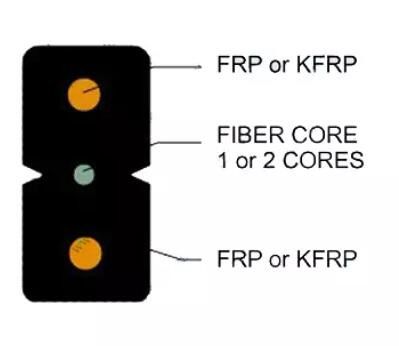

Drawings of 1 Core Ftth Indoor Drop Cable Home Frp Kfrp Outdoor Fiber Optic Cable

1 Core FTTH Drop Cable 0



1 Core FTTH Drop Cable 1
