Product Details:
|
| Conductors: | ≥10 | Jacket: | LSZH/PVC |
|---|---|---|---|
| Outer Sheath Color: | Aqua | Fiber Type: | Multi Mode |
| Application: | Telecommunication | Strength Member: | Aramid Yarn |
| Lifespan: | About 30 Years | Warranty: | 1 Year |
| High Light: | Flat Duplex Fiber Optic Cable,GJFJBV Duplex Fiber Optic Cable,GJFJBV Indoor Optic Fiber Cable |
||

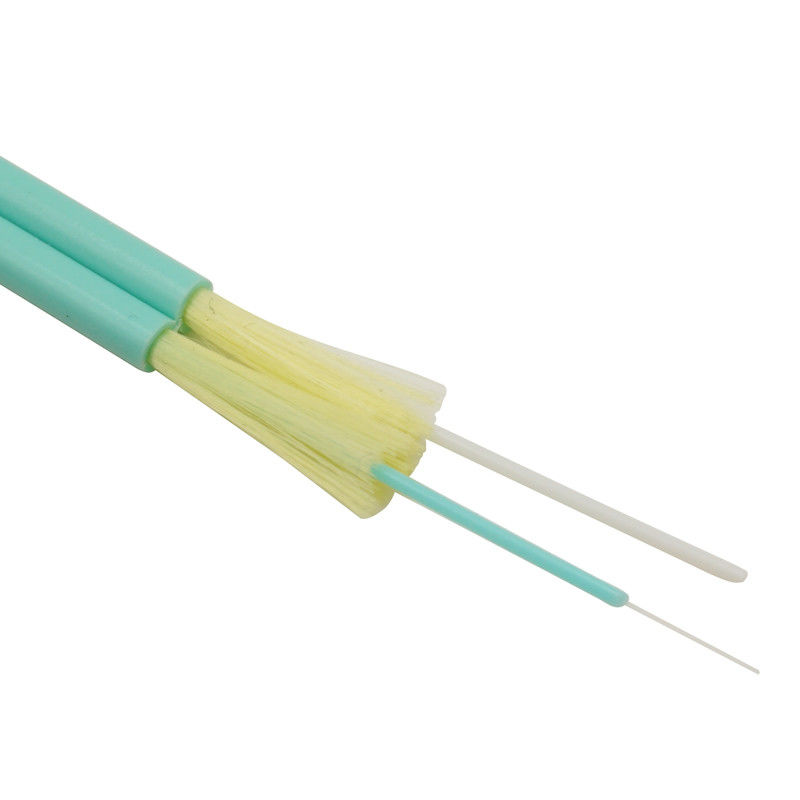

Flat Duplex Fiber Optic Cable For Distribution GJFJBV Multi Mode Indoor Optic Fiber Cable
Product Description:
GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant)
Feature:
Flame retardant characteristics meet the requirements of relevant standards.
|
No. of fiber
|
2
|
|||
|
Fiber Model
|
OM3
|
|||
|
Strength Member
|
Material
|
Aramid yarn
|
||
|
Tight buffer
|
Material
|
PVC
|
||
|
Diameter(±0.06)mm
|
0.9
|
|||
|
Thickness(±0.03)mm
|
0.32
|
|||
|
Outer Sheath
|
Material
|
LSZH
|
||
|
Color
|
Aqua
|
|||
|
Thickness(±0.05)mm
|
0.30
|
0.35
|
||
|
Cable Size(±0.1)mm
|
2.0*4.0
|
3.0*6.0
|
||
|
Cable Weight(±2)kg/km
|
8
|
12
|
||
|
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
||
|
Under Maximum Tension
|
20.0×Cable-φ
|
|||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
||
|
Transport&Storage
|
-40~+70
|
|||
|
Operation
|
-40~+70
|
|||
