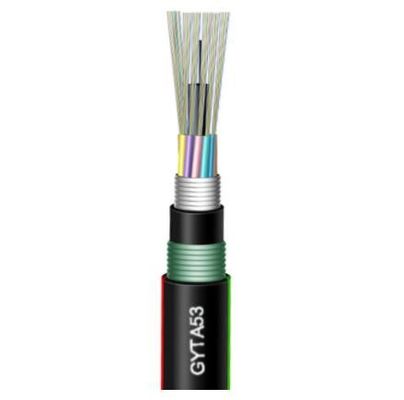

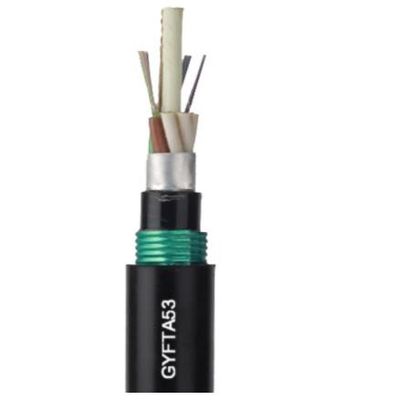

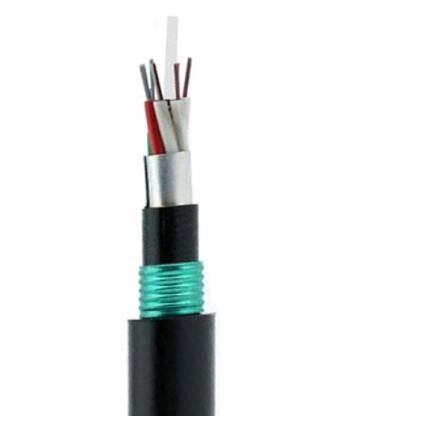

GYTA53 Direct Buried Fiber Optic Cable

GYTA53 Direct Buried Fiber Optic Cable
GYTA53 Direct Buried Fiber Optic Cable GYTA53 Direct Buried Fiber Optic Cable GYTA53 Direct Buried Fiber Optic Cable GYTA53 Direct Buried Fiber Optic Cable

Large Image :  GYTA53 Direct Buried Fiber Optic Cable

Product Details:
Place of Origin: China
Brand Name: WRC
Certification: ISO9001,SGS
Model Number: GYTA53 direct buried tube fiber optic cable
Payment & Shipping Terms:
Minimum Order Quantity: 5km
Price: USD0.50-USD15/Km
Packaging Details: Export Carton Packing
Delivery Time: 5-20 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 500Km per day

GYTA53 Direct Buried Fiber Optic Cable

Description
Application: Telecommunication,Duct,Telecom,Network Fiber Type: G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3
Number Of Conductors: ≥ 10,2,4 Type: Single Mode G652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber Count: 2-288 Core Color: Black,Blue,Grey,Customized,Green
Jacket: PE,MDPE,LSZH,PVC,PVC Outer Sheath Product Name: Stranded Loose Tube Armored Cable,Outdoor Optic Fiber Cable
Length: 2km Or Customized Length Jacket Material: PE,LSZH,TPU,LSZH OR PVC
Name: Outdoor Armor Fiber Optic Cable Oem: Available
Installation: Self- Supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct Structure: Loose Tube,Unitube
Operating Temperature: -40~75 Sheath Material: LSZH,HDPE
Strength Member: Steel Wire Fiber Color: Blue,Orange,Brown,Aqua,Grey
High Light:

GYTA53 Direct Buried Fiber Optic Cable

,

GYTA53 OFC Optical Fiber Cables

,

GYTA53 OFC Optical Fiber Cable

Description: GYTA53 direct buried tube fiber optic cable



GYTA53 fiber optic cable Characteristics

  Can be installed without shutting off the power

  Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV

  Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops

  Large span lengths and the largest span is over 1000m

 Good performance of tensile strength and temperature

 The design life span is 30 years



GYTA53 fiber optic cable Application

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans


Technical properties

Ref.outer diameter

mm

Ref.weight kg/km

Ref.daily max.working

tension kN

Max allowable working tension kN

Break strength

kN

Strength member CSA

mm2

Modulus of elasticity kN/ m2 Heat expansion coefficient ×10-6 /k

PE Sheath

AT sheath
12.5 125 136 1.5 4 10 4.6 7.6 1.8
13.0 132 142 2.25 6 15 7.6 8.3 1.5
13.3 137 148 3.0 8 20 10.35 9.45 1.3
13.6 145 156 3.6 10 24 13.8 10.8 1.2
13.8 147 159 4.5 12 30 14.3 11.8 1.0
14.5 164 177 5.4 15 36 18.4 13.6 0.9
14.9 171 185 6.75 18 45 22.0 16.4 0.6
15.1 179 193 7.95 22 53 26.4 18.0 0.3
15.5 190 204 9.0 26 60 32.2 19.1 0.1
15.6 194 208 10.5 28 70 33.0 19.6 0.1
16.3 211 226 12.75 34 85 40.0 20.1 0.1
16.8 226 242 15.45 41 103 48.0 24.0 -0.4
17.2 236 253 16.2 45 108 51.0 25.1 -0.5
17.9 249 266 18.0 50 120 58.8 26.1 -0.8

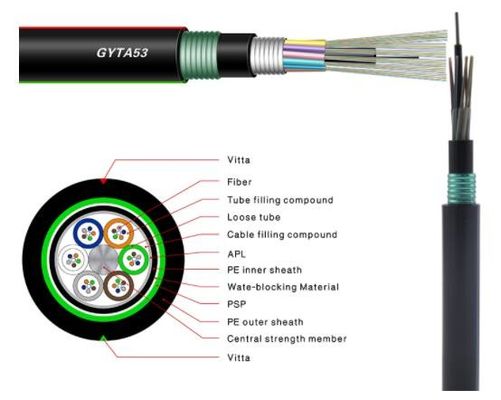

Drawings GYTA53 armoured direct fiber optical cable



GYTA53 Direct Buried Fiber Optic Cable 0

More products customized



GYTA53 Direct Buried Fiber Optic Cable 1
